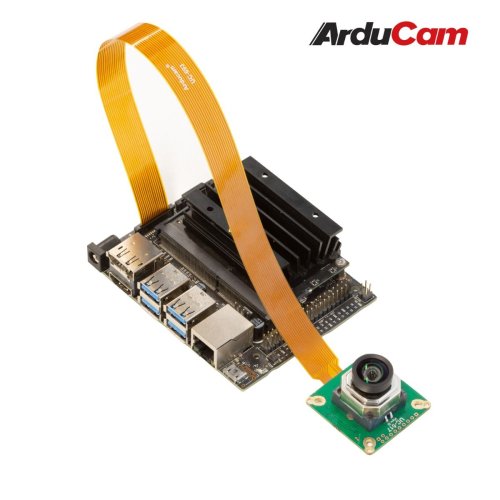

This Arducam High-Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High-Quality camera. However, the Arducam High-Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.

KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver. Please refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.

SUPPORTED PLATFORM DISCLAIMER

This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.

ADDITIONAL ACCESSORY INSTRUCTIONS

The 22-22 pin FPC Cable is included in the package. But please note that: If you are using an AGX Orin, an additional camera adapter (B0473) is required.

Specifications:

Camera

Still Resolution	12.3 Megapixels
Video Modes	NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin: L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps
Sensor Resolution	4056 x 3040 pixels
Sensor image area	6.287mm x 4.712 mm (7.9mm diagonal)
Pixel Size	1.55 µm x 1.55 µm
Optical Size	1/2.3"
IR Sensitivity	Integral IR-cut Filter, visible light only

Lens

FOCUS TYPE	MOTORIZED
Focal Length	3.9mm
F.NO	F2.8
Field of View(FOV)	75°(H)
Lens Mount	M12 Mount
MOD	0.3
Back Focal Length	4.49mm
Lens Dimension	Φ14×18.67mm

Electrical & Mechanical

CAMERA BOARD SIZE	38 × 38MM
Hole Pitch	Compatible with 29mm, 30mm, 34mm
POWER REQUIREMENT	WITH MOTORIZED MOTOR: 3.3V/500MA MAX WITHOUT MOTORIZED MOTOR: 3.3V/300MA MAX
Peaking Current	300mA

Documentations:

Package Includes:

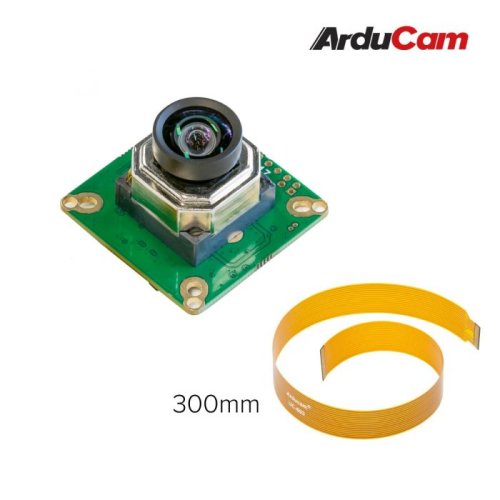

1 × Arducam 12MP Motorized Focus High-Quality Camera for NVIDIA Jetson Platforms
1 × 300mm 15pin-22pin flex ribbon cable
1 × 300mm 22pin-22pin flex ribbon cable
