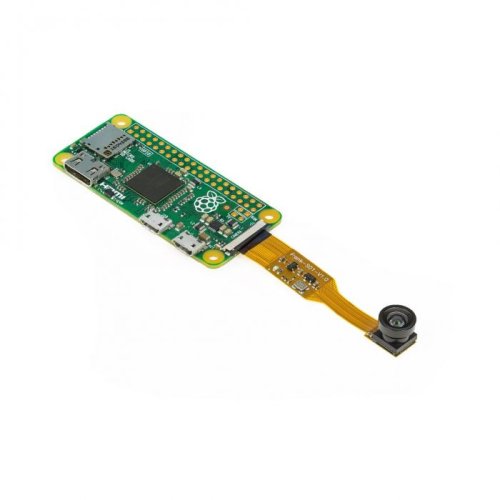

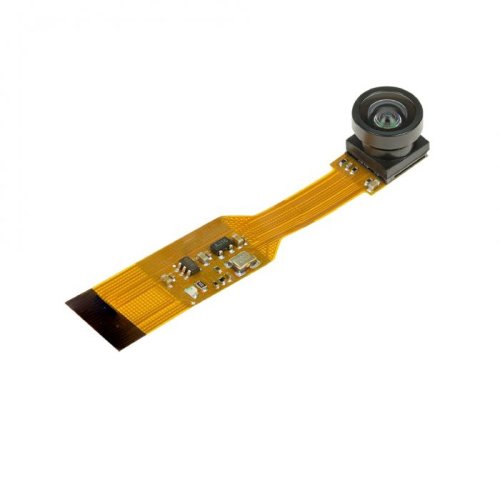

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.

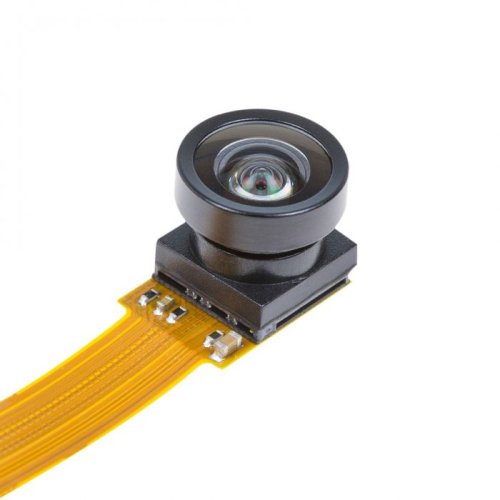

This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

Specifications:

Sensor	Omnivision OV5647 sensor
Optical Size	1/4” (OV5647)
Resolution	5MP 2592×1944
Frame Rates	1080p 30 fps, 720p 60fps, 480p 90fps
Focus Distance	1 m to infinity
Field of View(FOV)	160°(D)
Focus Type	Manual Focus
Lens Type	M7 Lens
Dimension	60mm × 11.5mm x 9.5mm

Applications:

Cellular phones,PDAs,Toys
Miniature camera
Other battery-powered products
PC multimedia
Digital still cameras,etc.

Note:

Raspberry Pi Board is Not included in the package

Documentations:

Package Includes:

1 x Arducam B006605 for Raspberry Pi Zero Camera Module Wide Angle 160 1/4 Inch 5MP OV5647 Spy Camera with Flex Cable for Pi Zero and Pi Compute Module

Arducam B006605 for Raspberry Pi Zero Camera Module Wide Angle 160 1/4 Inch 5MP OV5647 Spy Camera with Flex Cable for Pi Zero and Pi Compute Module
