- EFL: 1.3mm F.No: 2.2
- View Angle: D85.6°/H72.9°/V57.7°
- Distortion: <1.5%
- Image quality: >=200LW/PH(AT=0.13m)
- Focusing Range: 0.065m-∞(AT=0.13m)
- Chip Type: OV7251-G04A-1E(COB)
- Build-in 650nm IR block filter
- Array Size: 640*480 Lens Size: 1/7.5 inch
- 3x3μm pixel with Omnipixel3-GS technology
- Support putput format:8/10-bit RAW
- Support 2x2 monochrome binning
- One-lane MIPI serial output interface
- Active array size: 640*480
- Output interface:1-lane MIPI/LVDS serial output output formats: 10-bit RGB RAW or BW
- Maximum image transfer rate: 640*480: 100 fps
- Camera connector: BBR13-24K6417, Board connector: BBR43-24KB533
- Cellular phones
- Digital still cameras (DSC)
- Digital video camcorders (DVP)
- PC multimedia
- Tablets
- 1 x Arducam U6070 1/7.5 inch CMOS OV7251 Global Shutter Standalone Camera UC-7251-716
| Sensor Specifications | |
| Sensor type | CMOS OV7251 |
| Sensor size | 1/7.5'' |
| Lens Specifications | |
| Field of View | D85.6°/H72.9°/V57.7° |

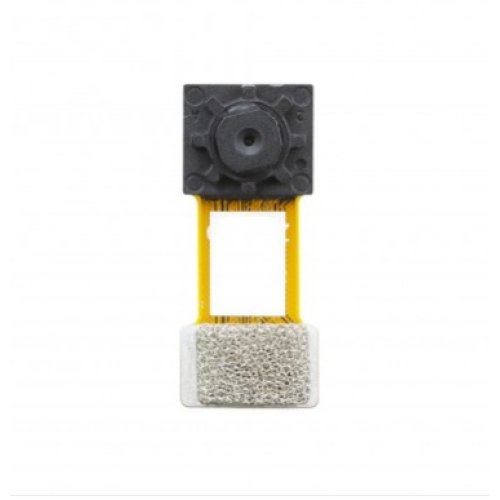

Arducam U6070 1/7.5 inch CMOS OV7251 Global Shutter Standalone Camera UC-7251-716
- Brand: ArduCAM
- Product Code:ArdC-U6070-Standalone-Cam
- Reward Points:14
- Availability:In Stock
- रo 1,615.42
-
रo 1,413.64
- Ex Tax:रo 1,198.00
- Price in reward points:1426
-
- 20 or more रo 1,602.44
- 50 or more रo 1,609.52
- 100 or more रo 1,588.28
