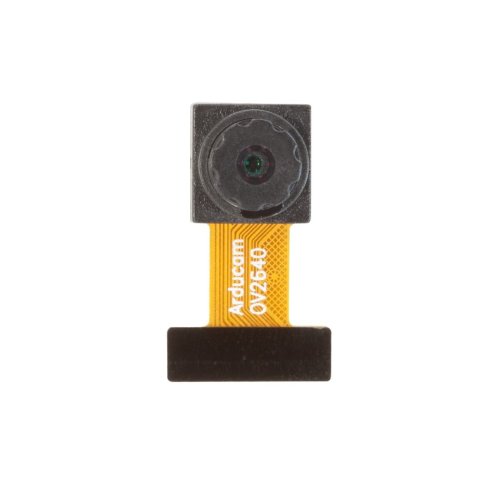

Arducam OV2640 Camera Module, 2MP Mini CCM Compact Camera Modules Compatible  Arduino ESP32 ESP8266 Development Board DVP 24 Pin Interface

OV2640 is known as an evergreen image sensor from OmniVision. It features DVP friendly interface, powerful on-chip ISP with JPEG encoding, and low power consumption, which makes the OV2640 image sensor unique and popular for IoT camera applications at all times.

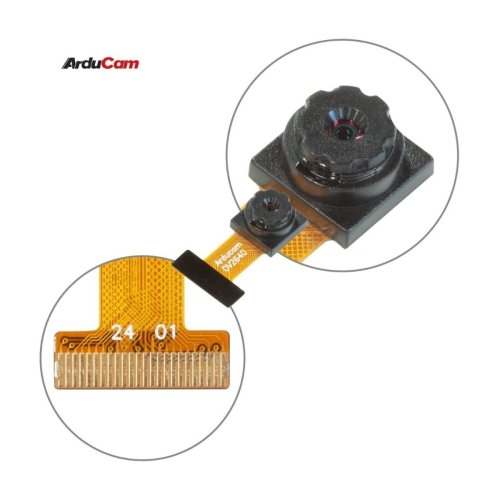

• This CCM (compact camera module) based on an OV2640 sensor, constructed with a high quality stock lens and FPC with 24 pin Goldfinger interface. It's mini but used widely, highly recommended for STM32, ESP32, ESP8266, and other low-end ARM and RISC microcontrollers.

Features:

• This 2MP mini Compact Camera Module is based on the 1/4″ OV2640 SOC sensor, which has an on-chip ISP, so as to do auto-exposure, auto-white balance to represent a nice image.
• DVP interface standards for digital video port, friendly to most of the low-end ARM and RISC microcontrollers like STM32, ESP32.
• The function of the hardware JPEG encoder, it off-loads the processing power and reduces memory footprint usage from the microcontrollers.
• Resolution: 1600 x 1200 (UXGA); Maximum Image Transfer Rate: 15fps@1600×1200, 30fps@SVGA, 60fps@CIF; Output Format: YUV/RGB/Raw RGB Data
• Lens SPEC: Stock lens; 52 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than 1% distortion.

Specifications:

• Camera
• - Array Size: 1600 x 1200 (UXGA)
• - Power Supply
• Core: 1.3V DC ± 5%
• Analog: 2.5~3.0V DC
• I/O: 1.7V to 3.3V
• - Power Consumption
• YUV mode full res & framerate: 125mW
• Compressed mode full Res & framerate: 140mW
• Standby:600μA
• - Image Sensor Format: Type 1/4″
• - Maximum Image Transfer Rate: 1600×1200@15fps, SVGA@30fps, CIF@60fps
• - Sensitivity: 0.6V/Lux-sec
• - S/N Ratio: 40dB
• - Dynamic Range: 50dB
• - Pixel Size: 2.2 x 2.2 μm
• - Dark Current: 15mV/s at 60°C
• - Output Format: YUV/RGB/Raw RGB Data
• - Shutter Type: Rolling Shutter
• - Color Filter Array: RGB Bayer Array
• - ISP Functions: AE, AWB, Sharpness, Noise Reduction, Defect Reduction, Gamma, Color Saturation, Special Effects
• Lens
• - EFL: 4.22mm
• - F.NO: 2.0
• - View Angle: 52 degree (diagonal)
• - Distortion: <1.0%
• - IR Sensitivity: Integral 650nm IR filter, visible light only
• - Lens Type: Fixed focus
• Module
• - Overall Dimension: 21 x 12.5 x 5.85mm

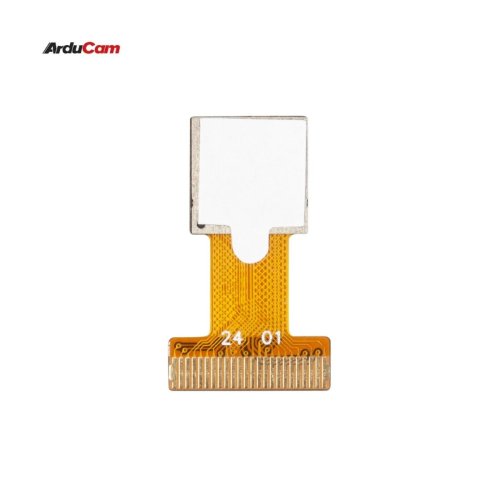

• - Interface: 24 pin goldenfinger
• - Mating Connector: F32R-1A7H1-11024

Package Includes:

• 1 x Arducam OV2640 CCM
