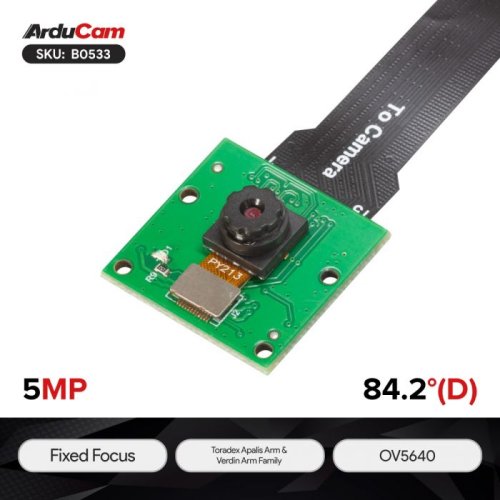

This compact camera module is designed specifically for the Toradex Apalis Arm and Verdin Arm family, delivering outstanding image quality in a highly portable form factor.

Equipped with a powerful 5MP OV5640 image sensor, it supports up to 30 frames per second at 1080p, ensuring smooth, high-resolution video.

Measuring just 25mm x 24mm, this tiny module is perfect for mobile devices and other applications where space is at a premium but image clarity and performance are crucial.

Features:

  • 5MP OV5640 CMOS sensor delivers sharp, high-quality images and videos.
  • Supports 2592x1944 resolution for stills and smooth 1080p at 30fps video.
  • Ultra-compact 24x25mm form factor enables flexible project integration.
  • Designed for Toradex Apalis Arm and Verdin Arm platforms.
  • Quick and easy setup with user-friendly configuration.

Specifications:

Image Sensor
SensorOV5640
Still Resolution5 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/4"
Output Format8-/10-bit RGB RAW, RGB, YUV, JPEG
Pixel Size1.4 µm x 1.4 µm
Sensor Active Area2592(H) × 1944(V)
Frame Rate2592x1944@15fps; 640x480/1024x768/1280x720/1920x1080@30fps
Lens
Focus TypeFixed Focus
FOV84.2°(D)×71.7°(H)×57°(V)
Lens MountStock Lens
F.NOF2.0±5%
E.F.L4.22mm
Distortion<1.0%
IR SensitivityIntegral IR-cut Filter, visible light only
Electrical and Mechanical
Operating Voltage3.3V
Operating Temp.32°F-158°F (0°C to 70°C)
Working CurrentMax: 300mA
Camera Board Size24 × 25 mm
Functionality and Compatibility
Supported PlatformToradex Apalis Arm and Verdin Arm Family

Applications:

  • Machine Vision
  • Robotics
  • Environmental Observation
  • Dynamics Capture
  • Edge AI

Notes

  • This product only supports the Toradex Apalis Arm and Verdin Arm Family.

Documentations:

Package Includes:

  • 1 x 5MP Camera Module

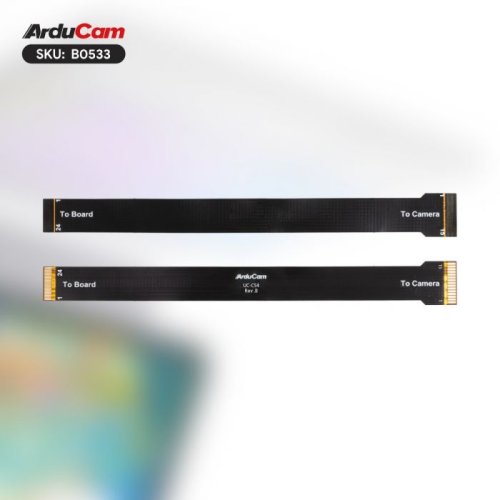

  • 1 x 15cm 15-24pin FPC Cable

Write a review

Please login or register to review

Arducam B0533 5MP OV5640 Camera Module for Toradex Apalis Arm and Verdin Arm Family

  • Brand: ArduCAM
  • Product Code: NR-ArdC-B0533-5MP-OV5640-Camera-Module
  • Reward Points: 35
  • Availability: In Stock
  • रo 3,373.00
  • रo 2,951.00

  • Price in reward points: 3513

  • 4 or more रo 3,358.00
  • 8 or more रo 3,344.00
  • 20 or more रo 3,330.00
  • 41 or more रo 3,316.00
