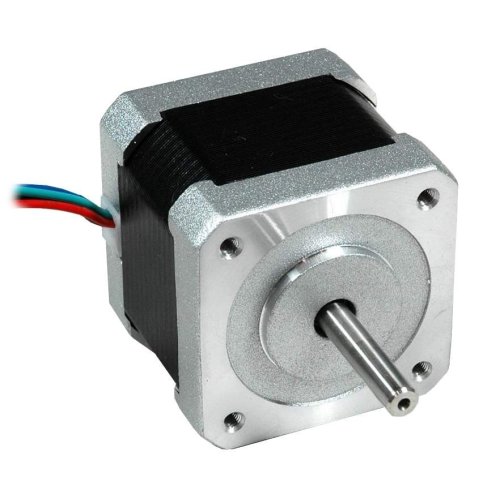

Makeblock 42BYG High quality Step Motor now available in India!
The 42BYG step motor can be used for accurate motion control applications, like XYZ stage.
Specification:
- PHASE : 2PHASE
- STEP ANGLE : 1.8+-5%°/STEP
- VOLTAGE : 2.55V
- CURRENT : 1.7A/PHASE
- RESISRANCE : 1.5+-10%/PHASE
- INDUCRANCE : 2.8+-20%mH/PHASE
- HOLDING TORQUE : 40N.cm Min
- DERENT TORQUE : 2.2N.cm Max
- INSULATION CLASS : B
- LEAD STYLE : AWG26 UL1007
- ROTOR TORQUE : 54G.cm2
Size Charts:
Documents:
Stepper Motor- 42BYG
- Brand: MakeBlock
- Product Code:Mke-Blck-Step-Motr
- Reward Points:26
- Availability:Order now and get it in 07 days
-
रo 3,050.30
- Ex Tax:रo 2,585.00
- Price in reward points:2585
