Makeblock 2H Microstep Driver is a type of 2-phase hybrid stepper motor driver. It is designed for driving 2-phase hybrid stepper motor of all kinds with 20mm to 42mm outside diameter and less than 2.0A phase current.

Features:

Average current control, 2-phase sinusoidal output current drive
Supply voltage from 12VDC to 36VDC
Opto-isolated signal I/O
Overvoltage, under voltage, overcurrect, phase short circuit protection
8 subdivision option: 1/2/4/8/16/32/64/128
8 channels output phase current setting
Offline command input terminal
Electrical input signal is TTL compatible
Low noise and vibration
Motor torque is related to speed, but not related to step/revolution
High start speed
High holding torque at high speed
Easy to install on Makeblock parts

Electrical specification:

Input volltage : 12~36VDC
Input current < 2A
Output current : 0.44A~2.83A
Consumption: 40W
Temperature : Working Temperature: -10~45℃ / Stocking Temperature: -40~70℃
Humidity : Not condensation, no water droplets
Gas Prohibition of combustible gases and conductive dust
Weight : 125 g

Documents:

For more informations about this product, please visit our wiki page.

If you have any questions about this product or you need technical support, please post it in our forum.

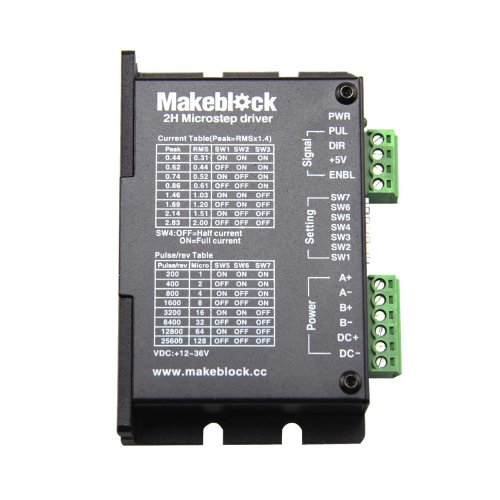

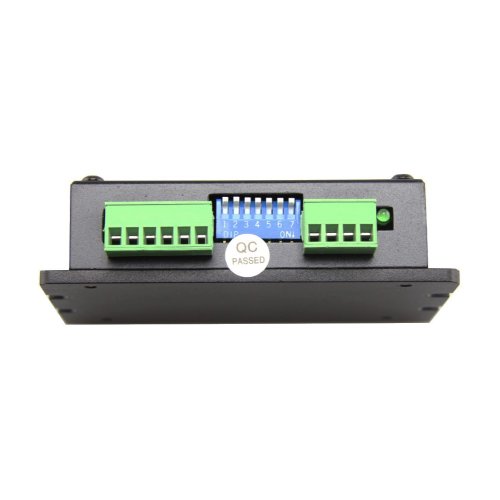

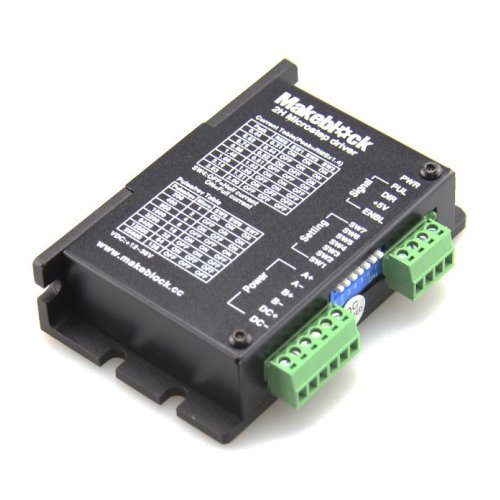

Me 2H Microstep Driver V1.0

Brand: MakeBlock
Product Code:Mke-Blk-2H-Microstep-Drv
Reward Points:24
Availability:Discontinued

रo 2,796.60
Ex Tax:रo 2,370.00
Price in reward points:2370
