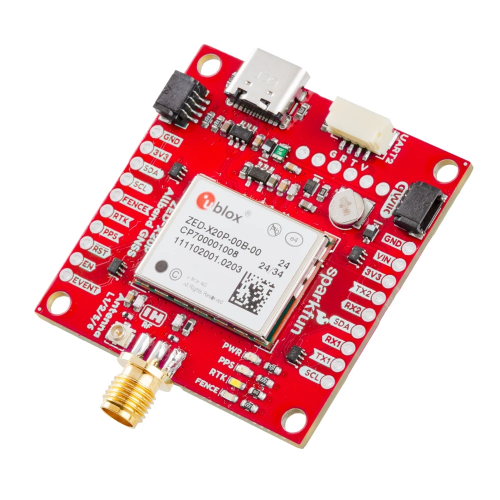

The SparkFun Allband GNSS RTK Breakout - ZED-X20P (Qwiic) features the latest GNSS engine from u-blox, the X20, which is a successor to their popular F9 engine. This board's dimensions, pin layout, and connectors are very similar to the SparkFun GPS-RTK-SMA Breakout - ZED-F9P (Qwiic); in most circumstances, it can be used as a drop-in replacement. The board also accommodates users with diverse interfaces, including USB, UART, SPI, and I2C.

The ZED-X20P module is an all-band, high-precision GNSS receiver that concurrently processes signals from the GPS, Galileo, BeiDou, QZSS, and NavIC constellations across all GNSS frequency bands, including L-band. With positioning algorithms for Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies, the module supports standard RTCM corrections for Virtual Reference Stations (VRS) in a Network RTK setup or a local base station setup. L-band correction services are natively supported without integrating an external receiver, such as the NEO-D9S.

With its exceptionally high update rate, the ZED-X20P module is ideal for control applications, ensuring smooth and reliable operation. The module also protects system integrity with multi-layered defenses, including a Root of Trust, jamming and spoofing detection, cryptographic authentication of navigation messages through Galileo OSNMA, and more. This represents the highest level of integration in a single-chip receiver for the navigation and robotics markets and in unmanned autonomous vehicles (UAVs), guidance systems, and auto-steering applications.

Note: The USB interface does not fully comply with industry standards and is unsuitable for production use. The USB 2.0 FS (full speed, 12 Mbit/s) interface can be used for host communication. Due to the hardware implementation, certifying the USB interface may not be possible.

Features & Specs:

SparkFun Allband GNSS RTK Breakout - ZED-X20P Features

• U-blox ZED-X20P Allband, GNSS module
• GNSS Constellations
• GPS (USA)
• Galileo (EU)
• BDS (China)
• QZSS (Japan)
• NavIC (India)
• SBAS Systems:
• WASS (USA)
• EGNOS (EU)
• BDSBAS (China)
• MSAS (Japan)
• GAGAN (India)
• Breakout board:
• Dimensions: 1.70" x 1.70" (43.2mm x 43.2mm)
• Four mounting holes:
• 4-40 screw compatible
• Connections:
• 19 PTH Pins
• 4-pin JST Qwiic connector* (x2)
• UART interfaces (x3)
• USB-C connector
• 6 PTH pins (BlueSMiRF/Serial-to-UART)
• 4-pin locking JST connector
• LEDs:
• PWR - Red 3.3V power indicator
• PPS - Yellow Pulse-Per-Second indicator
• RTK - White RTK correction indicator
• FENCE - Blue Geofence status indicator
• Backup battery

 ZED-X20P General Features

• Supply voltage: 2.7V to 3.6V
• GNSS Support:
• GPS: L1C/A, L2C, L5
• Galileo: E1B/C, E5a, E6
• BeiDou: B1I, B1C, B2a, B3I
• QZSS: L1C/A, L1C/B*, L2C, L5, L6
• NavIC: L1*, L5
• SBAS: L1C/A
• Interfaces:
• UART x2
• SPI
• I2C
• Features
• Programmable flash memory
• Carrier phase output
• Jamming detection
• Galileo OSNMA
• Secure boot
• Services:
• AssistNow
• PointPerfect
• Operating temperature: -40°C to 85°C
• Dimensions: 17.0mm x 22.0mm x 2.4mm

Feature in development

Documentations:

• ZED-X20P Product Information Page
• ZED-X20P Product Summary
• u-blox ZED-X20P Showcase Video

Package Includes:

• 1 x SparkFun Allband GNSS RTK Breakout - ZED-X20P (Qwiic)
