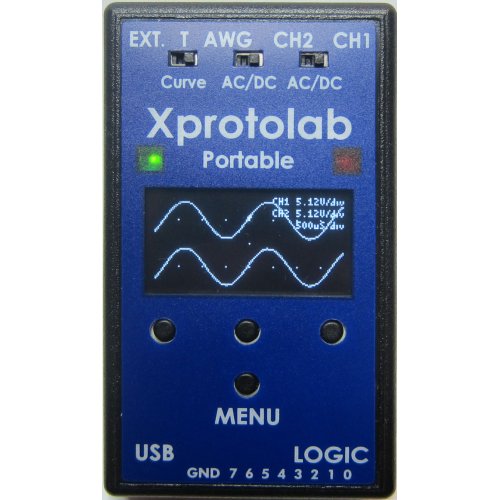

This is the portable version of the Xprotolab. The Xprotolab Portable is a small mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer.

Features:

• Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.
• Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
• Meter Mode: Average, Peak to peak and Frequency readout.
• XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).
• Spectrum Analyzer with different windowing options and selectable vertical log.
• Horizontal and Vertical Cursors with automatic waveform measurements.
• Arbitrary Waveform Generator with Sweep on all parameters.
• Display options: Persistence, Different grid options, and more.
• Curve tracer function

General Specifications:

• ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROM
• Graphic OLED display 1.3", 128x64 pixels
• Enclosure size: 3.13" x 1.83" 0.7"
• Li-Ion Battery 600mAh
• PDI interface.
• 4 tactile switches
• USB connectivity: Windows, Linux, MAC, Android
• Logic Analyzer specifications:
• 8 Digital Inputs, 3.3V / 5V
• 820k ohm input impedance
• Maximum sampling rate: 2MSPS
• Frequency counter: 16Mhz
• Protocol Sniffer: UART, I2C, SPI
• Internal pull up or pull down.
• Buffer size: 256

Oscilloscope specifications:

• 2 Analog Inputs
• Maximum Sampling rate: 2MSPS
• Analog Bandwidth: 200kHz
• Resolution: 8bits
• Input Impedance: 1M? 15pF
• Buffer size per channel: 256
• Input Voltage Range: -14V to +20V

AWG specifications:

• 1 Analog Output
• Maximum conversion rate: 1MSPS
• Analog Bandwidth: 50kHz
• Resolution: 8bits
• Output current > +/- 7mA
• Buffer size: 256
• Output Voltage: +/- 4V

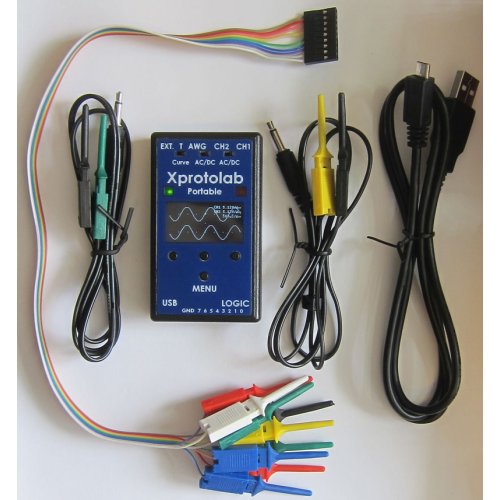

More information about the accessories can be found here:

• Logic analyzer probe
• Hook clip probes
• Carrying case
• Micro USB Cable: 3ft or 6ft
• 3.5mm to BNC converter cable
• 3.5mm to BNC adapter
• Tripod Adapter

You can select which accesories you want to include below.

Documentations:

• Wiki

Package Includes:

• 1 x Xprotolab Portable
