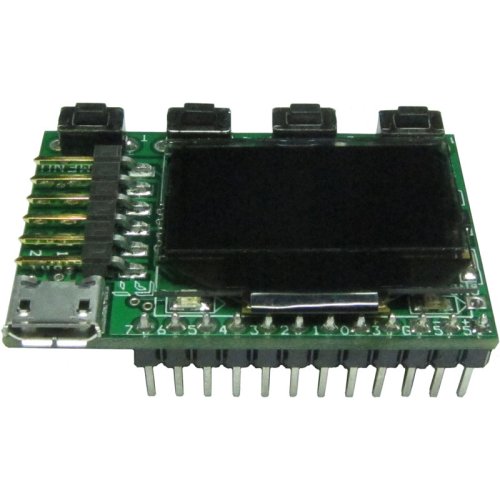

The Xprotolab is the first mixed signal oscilloscope with an arbitrary waveform generator in a DIP module. It measures only 1 x 1.6 inches and can be mounted directly on a breadboard. The Xprotolab can also be used as a development board for the AVR XMEGA microcontroller.

Features:

• Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.
• Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.
• Meter Mode: Average, Peak to peak and Frequency readout.
• XY Mode:
• Plot Lissajous patterns
• See the phase difference between two waveforms
•  V/I Curve tracer with an external resistor

• Spectrum Analyzer with different windowing options and selectable vertical log.
• Horizontal and Vertical Cursors with automatic waveform measurements.
• Arbitrary Waveform Generator with Sweep on all parameters.
• Display options: Persistence, Different grid options, and more.

General Specifications:

• ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROM
• Graphic OLED display 0.96", 128x64 pixels
• Module size: 1.615" x 1.01"
• PDI interface.
• 4 tactile switches
• USB connectivity: Windows, Linux, MAC, Android

Logic Analyzer specifications:

• 8 Digital Inputs, 3.3V level
• Maximum sampling rate: 2MSPS
• Frequency counter: 16Mhz
• Protocol Sniffer: UART, I2C, SPI
• Internal pull up or pull down.
• Buffer size: 256

Oscilloscope specifications:

• 2 Analog Inputs
• Maximum Sampling rate: 2MSPS
• Analog Bandwidth: 200kHz
• Resolution: 8bits
• Input Impedance: 1MΩ
• Buffer size per channel: 256
• Input Voltage Range: -14V to +20V

AWG specifications:

• 1 Analog Output
• Maximum conversion rate: 1MSPS
• Analog Bandwidth: 44.1kHz
• Resolution: 8bits
• Output current > +/- 7mA
• Buffer size: 256
• Output Voltage: +/- 2V

Documentations:

• Wiki

Package Includes:

• 1 x Xprotolab
