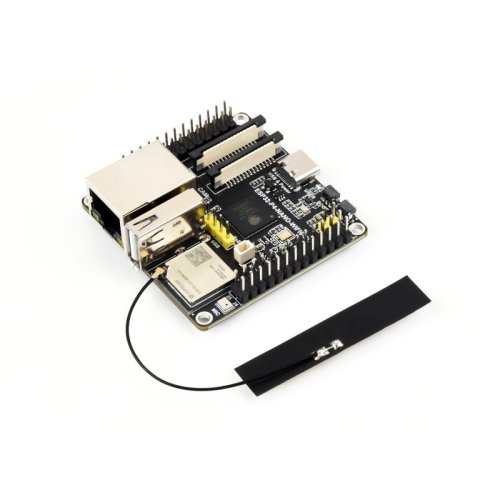

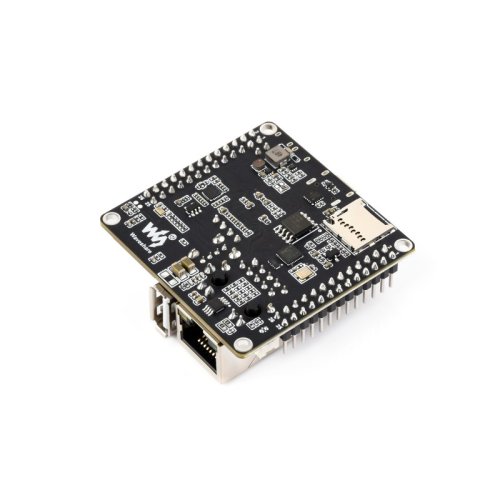

ESP32-P4-NANO-WIFI6-DB

Development Board

Based on ESP32-P4NRW32X chip with RISC-V dual-core and single-core processors

Kit Selection:

Kit Connection Examples:

10.1″ DSI Capacitive Touch Display

IPS Optical bonding toughened glass panel with 800 × 1280 Resolution and 178° Wide Viewing Angle. Supports 10-Point Touch and delivers clear visuals with a high-quality viewing experience

• Model : 10.1-DSI-TOUCH-A
• Resolution : 800 × 1280 (H × V)
• Communication Interface : MIPI-DSI (2/4-lane)
• Brightness : 400cd/m² (supports customization for 1000cd/m² high brightness version)
• Touch Chip : GT9271
• Outline Dimension : 147.0 × 239.0 (mm)
• Display area : 135.36 × 216.58 (mm)
• Pixel pitch : 0.1692 (H) × 0.1692 (V) (mm)
• Contrast ratio : 800 : 1
• Operation temperature : 0℃ ~ 60℃

Raspberry Pi Camera (B)

5MP | Manual Focus

• Sensor : OV5647 : CMOS size : 1/4inch
• PIXELS : 5MP : Aperture : F2.0
• Focal length : 6mm : Field of view : 60.6°
• Night Vision function : Not supported : FOCUSING : Manual Focus

Development Board Introduction:

This product is a powerful RISC-V development board based on the ESP32-P4NRW32X, featuring a dual-core high-performance processor running at up to 400MHz and a single-core low-power processor running at up to 40MHz. It provides a wide range of human-machine interface (HMI) capabilities, including MIPI-CSI with an integrated Image Signal Processor (ISP) and MIPI-DSI interface, as well as commonly used peripherals such as SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB 2.0 OTG High-Speed, Ethernet, and TF Card storage expansion for high-speed connectivity.

The ESP32-P4NRW32X chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit to enhance data and operation security. Designed for high-performance and security-sensitive applications, the ESP32-P4-NANO-WIFI6-DB is well suited for applications including human-machine interfaces, edge computing, and I/O connectivity.

Key features include:

• Features a 32-bit RISC-V dual-core high-performance processor running at up to 400MHz and a single-core low-power processor running at up to 40MHz
• 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
• Integrates a JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 encoder
• 32MB PSRAM in the ESP32-P4NRW32X chip's package, with onboard 16MB Nor Flash
• Onboard rich resources include MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, TF card slot, microphone, speaker, and RTC Batt connectors
• Onboard 2 x 2 x 13 GPIO headers with 28 x programmable GPIOs
• Onboard ESP32-C5-MINI-1U module with an external antenna for 2.4GHz / 5GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE)
• Supports Secure Boot, Flash Encryption, hardware cryptographic accelerators, hardware random number generator, Access Permission Management (APM), and privilege separation

Highly integrated and powerful performance

Adopts ESP32-P4NRW32X high-performance MCU

WiFi 6 and Bluetooth module

Onboard ESP32-C5-MINI-1U module with an external antenna to extend 2.4GHz / 5GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4NRW32X

Reserved PoE Module Header

supports connecting PoE module, allowing data and power to be transmitted simultaneously over an Ethernet cable

optional for PoE Module

Provides Both Network Connection And Power Supply for ESP32-P4-Module-DEV-KIT board In Only One Ethernet Cable

What's On Board:

• ESP32-P4NRW32X : ESP32-P4NRW32X with 32MB PSRAM
• ESP32-C5-MINI-1U : extending Wi-Fi 6 / Bluetooth 5 (LE) for ESP32-P4, onboard IPEX 3 connector for external antenna
• Display interface : MIPI 2-lane
• Camera interface : MIPI 2-lane
• USB Type-C connector : for 5V power input, program burning and debugging
• USER-LED : Power supply indicator
• BOOT button : Press it when powering on or resetting to enter download mode
• RESET button
• PoE module / external power supply header : for connecting external 5V power supply or PoE module power supply
• RTC Batt header : for connecting rechargeable RTC Batt (supports rechargeable RTC batteries only)
• Onboard microphone : for audio capture
• PoE module header : for connecting to a compatible PoE module
• Type-A Port : USB OTG 2.0 High Speed port
• RJ45 100M Ethernet port : 100Mbps Ethernet
• Speaker header : MX1.25 2P connector, supports 8Ω 2W speaker
• GPIO header : Two 2 × 13pin expansion headers with 2.54mm pitch
• TF card slot : Local storage and media resource expansion

Pin definition:

outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

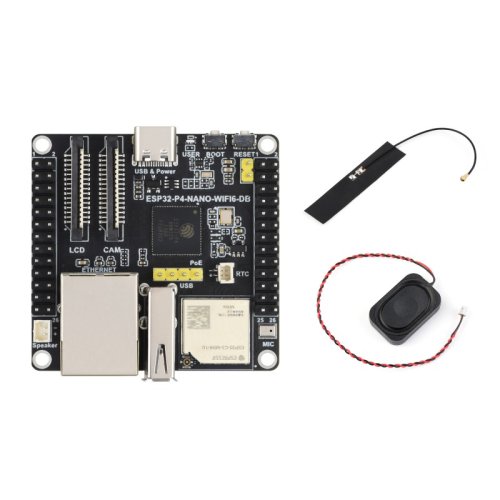

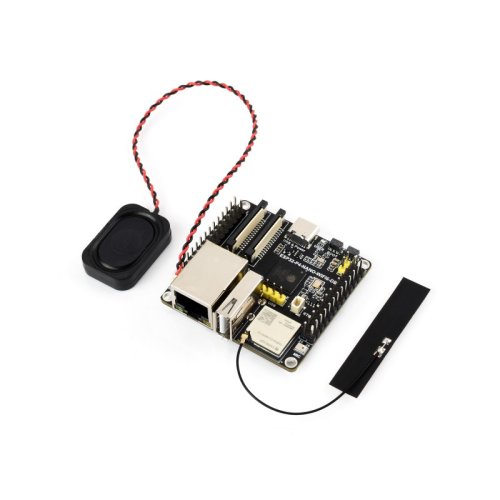

ESP32-P4-NANO-WIFI6-DB

• 1 x ESP32-P4-NANO-WIFI6-DB
• 1 x 8Ω 2W speaker
• 1 x FPC dual-band Wi-Fi antenna

                    OR

ESP32-P4-NANO-WIFI6-DB-KIT-A

• 1 x ESP32-P4-NANO-WIFI6-DB
• 1 x RPi Camera (B)
• 1 x 8Ω 2W speaker
• 1 x FFC 15PIN cable
• 1 x 15PIN to 22PIN cable
• 1 x FPC dual-band Wi-Fi antenna

                        OR

ESP32-P4-NANO-WIFI6-DB-KIT-B

• 1 x ESP32-P4-NANO-WIFI6-DB
• 1 x PoE module
• 1 x 8Ω 2W speaker
• 1 x FPC dual-band Wi-Fi antenna
• 1 x Screws pack

                            OR

ESP32-P4-NANO-WIFI6-DB-KIT-C

• 1 x ESP32-P4-NANO-WIFI6-DB
• 1 x PoE module
• 1 x 8Ω 2W speaker
• 1 x FPC dual-band Wi-Fi antenna
• 1 x 15PIN to 22PIN cable 15cm
• 1 x FFC 15PIN cable
• 1 x RPi Camera (B)
• 1 x Screws pack

                            OR

ESP32-P4-NANO-WIFI6-DB-KIT-D

• 1 x 10.1inch DSI LCD
• 1 x ESP32-P4-NANO-WIFI6-DB
• 1 x PoE module
• 1 x Standoffs and screws pack
• 1 x USB Type-A male-to-male cable
• 1 x USB Type-A to Type-C cable ~1m
• 1 x FPC dual-band Wi-Fi antenna
• 1 x RPi Camera (B)
• 1 x MIPI-DSI-Cable
• 1 x MX 1.25 2PIN to 2.54 3PIN cable
• 1 x 15PIN to 22PIN cable 15cm
• 1 x FFC 15PIN cable
• 1 x FFC 22PIN cable (2PCS)
• 1 x MX1.25 2PIN to MX1.25 4PIN cable
• 1 x 8Ω 2W speaker
