ESP32-C6 1.28inch LCD display

development board

Integrated GC9A01 Display Driver

Version Options:

                    ESP32-C6-LCD-1.28                                     ESP32-C6-LCD-1.28-B

    without touch control and CNC metal case          without touch control, comes with CNC metal case

Features:

The ESP32-C6-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 1.28inch LCD display, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), and other peripherals, making it easy to develop and integrate into end products.

Key features:

• Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
• Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
• Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash
• Type-C port, easier to use
• Onboard 1.28inch LCD display for clear color picture display, 240 × 240 resolution, 65K color
• Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• Onboard PCF85063 RTC chip for convenient RTC functionality
• Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
• Onboard SH1.0 14PIN expansion connector, adapting 6 × GPIO, 1 × UART, and 1 × I2C
• Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility

LCD parameters:

• Display panel : IPS : Display Size : 1.28inch
• Display Resolution : 240 × 240 resolution : Display Color : 65K
• Brightness : 400cd/㎡ : Contrast Ratio : 1100 : 1
• communication interface : SPI : Driver IC : GC9A01A

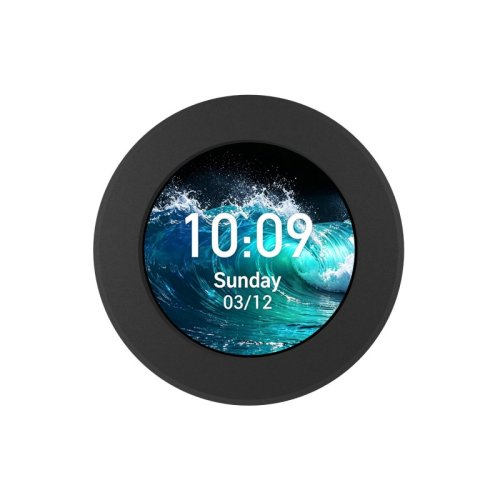

Optional CNC Metal Case:

Adopts CNC metal case with Acrylic dull-polish bottom plate

Onboard 1.28inch LCD display

Round IPS panel, 240 × 240 resolution, 65K colors

ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

Wi-Fi 6 and BLE 5 support

ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

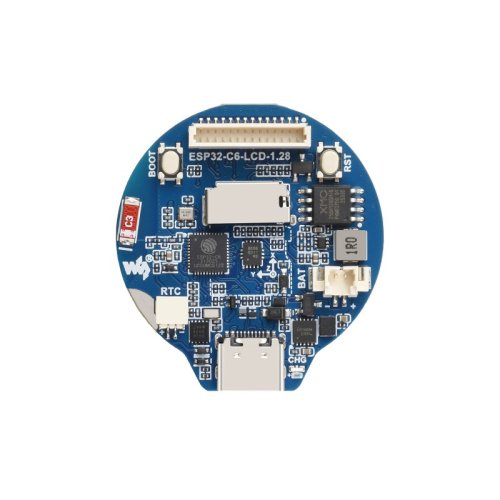

What's On Board:

• ESP32-C6 : Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4GHz Wi-Fi 6 and BLE 5
• 2.4GHz ceramic antenna
• TF card slot
• BOOT button : Press it when resetting to enter download mode
• RESET button
• 16MB NOR Flash
• QMI8658 : 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
• MX1.25 Lithium Batt header : MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
• ETA6096 : high-efficiency Lithium Batt charging chip
• Charging indicator : When a Batt is connected, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
• USB Type-C port : USB to UART, for programming and log printing
• PCF85063 RTC chip
• SH1.0 2PIN RTC Batt header : for connecting rechargeable RTC Batt

Pin Definitions:

outline dimensions:

ESP32-C6-LCD-1.28

ESP32-C6-LCD-1.28-B

Resources and Services:

Documentations:

• Wiki

Package Includes:

ESP32-C6-LCD-1.28

• 1 x ESP32-C6-LCD-1.28 host
• 1 x SH1.0 14PIN cable 100mm

                        OR

ESP32-C6-LCD-1.28-B

• 1 x ESP32-C6-LCD-1.28-B host
• 1 x SH1.0 14PIN cable 100mm
• 1 x Screwdriver
