Industrial IoT Wireless Expansion Board For Raspberry Pi CM5, 4G / 5G / LoRa Expansion Support, Gigabit Ethernet RJ45 port, dual MIPI interfaces, supports 4K output

• Industrial Wireless Expansion Board
• for Raspberry Pi CM5
• suitable for IoT applications like IoT gateway, wireless router,
• intelligent data acquisition, etc.

4G / 5G / LoRa Support, Multiple Interfaces

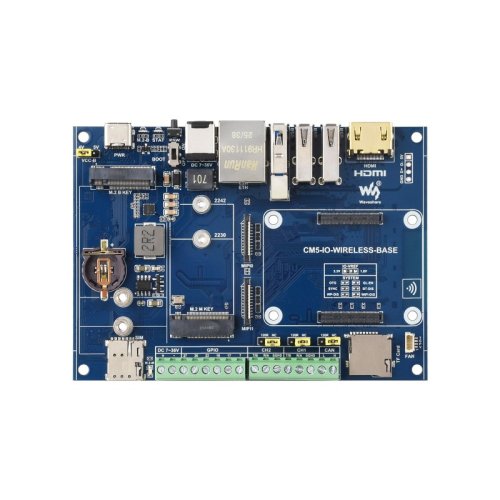

Specifications:

• CM5 Socket: Suitable for all variants of Compute Module 5
• Networking: 1 × Gigabit Ethernet RJ45 port
• Wireless Expansion: Supports LoRa communication modules via M.2 B KEY slot (adapter board required)
• Cellular Expansion: Supports 4G/5G communication modules via M.2 B KEY slot
• USB Ports: 1 × USB 2.0 Type-C, 2 × USB 2.0 Type-A, 1 × USB 3.2 Gen1 Type-A
• Video Output: 1 × HDMI port, supports up to 4K output
• MIPI Interface: 2 × MIPI interfaces, supports CSI/DSI communication
• M.2 M KEY: PCIe Gen2/3 ×1, supports 2230/2242 NVMe SSD or AI modules
• M.2 B KEY / Mini-PCIe: Supports 5G, 4G, LoRa, and other wireless modules (via adapter board)
• Storage: 1 × TF card slot (for Compute Module 5 Lite variants without eMMC)
• RS485 Interface: 2 × RS485 ports
• CAN Interface: 1 × CAN port, supports communication rates up to 1 Mbps
• GPIO: 6 × GPIO pins directly connected to the Compute Module 5 core
• Fan Header: 5V, 4-pin JST-SH PWM fan connector
• Power Input: 7V–36V DC (screw terminal and DC jack), 5V/5A via Type-C
• Dimensions: 145 × 90 × 40 mm

Connecting with Compute Module 5

• Adapting 6 × GPIO pins and onboard standard CM5 socket, suitable for
• Compute Module 5 Lite / eMMC series module

* for reference only, the CM5 is NOT included, please purchase separately

4G / 5G / LoRa communication

• modules support
• onboard M.2 slot and comes with a Mini-PCIe adapter, compatible with 4G / 5G / LoRa and other communication modules with M.2 or Mini-PCIe interface

An additional communication module is required to enable 5G / 4G / 3G / 2G cellular network or LoRa gateway function, recommended: SIM7600G-H-M.2, SIM7600G-H-PCIE, SIM8260G-M2, SX1302 868M LoRaWAN Gateway (B).

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list

Applicable M.2 drive sizes

NVMe Drive Slot Support

Only supports the NVMe Protocol Solid State Drives

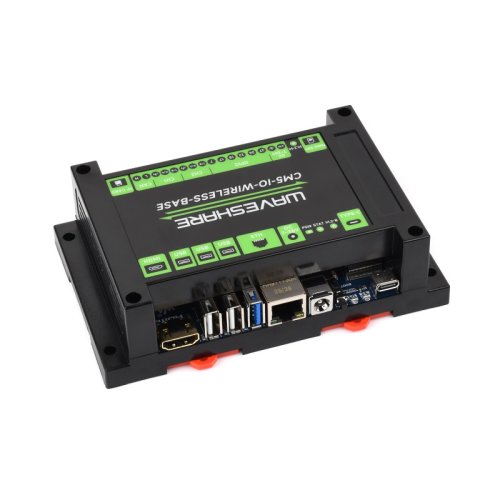

More rich interfaces

• Features multiple interfaces including USB 3.0 / CAN / RS485 /
• M.2 M KEY / M.2 B KEY, easy to use

Reserved space for CM5 cooling solution:

* for reference only, the heatsink and cooling fan are NOT included,

please purchase separately

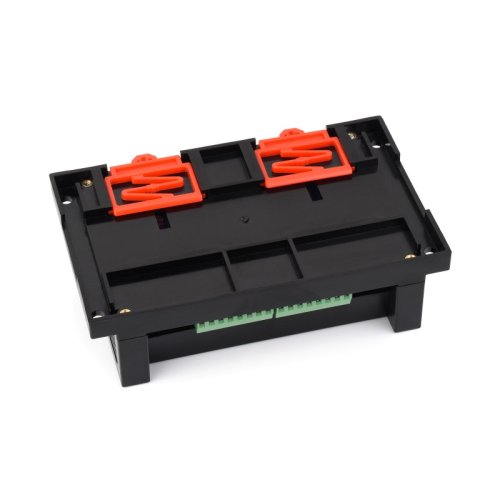

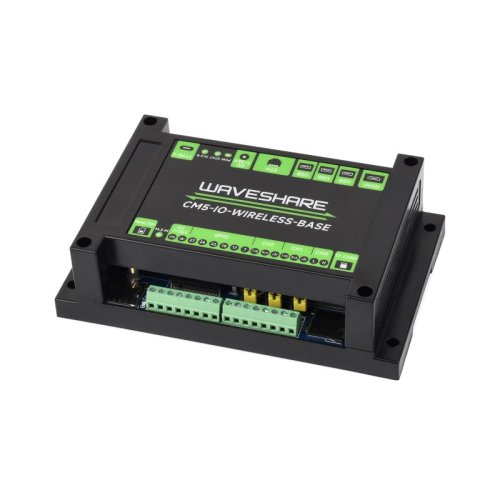

Rail-mount support

• rail-mount ABS protection case, easy to install, more safe operation

* for reference only, the rail-mount buckle is NOT included, please refer to the package content for detailed part list.

Application example

• suitable for IoT gateway, 4G / 5G router, LoRa gateway, IoT data acquisition and monitoring, industrial PLC, or other industrial applications

* for reference only, the CM5 and display are NOT included, please refer to the package content for detailed part list

Documentations:

• Wiki

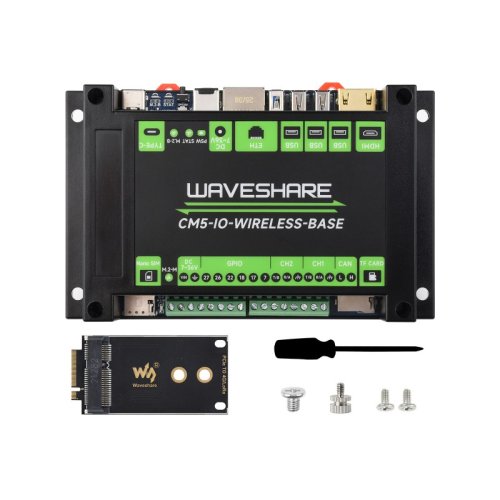

Package Includes:

• 1 x CM5-IO-WIRELESS-BASE
• 1 x PCIe to 4G/LoRa adapter
• 1 x Screws pack
• 1 x Screwdriver
