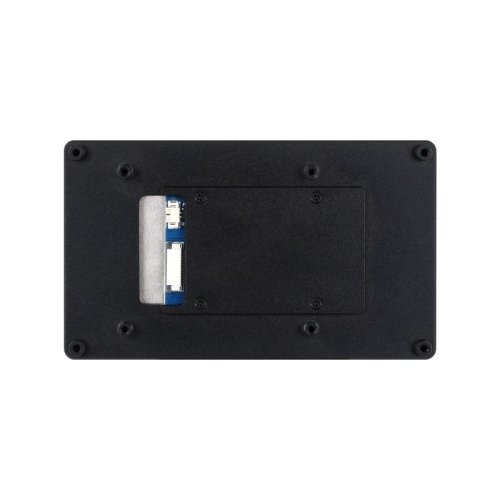

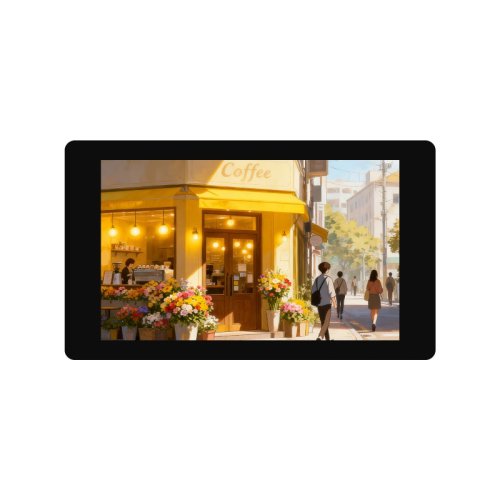

4 / 4.3inch DSI Touch Display:

Version Options:

• 4-DSI-TOUCH-A 4inch touch display, 480 × 800 resolution
• 4.3-DSI-TOUCH-A 4.3inch touch display, 480 × 800 resolution

Device and System Support:

• Raspberry Pi Supports Raspberry Pi OS, 5-point touch
• RK3506 Supports Buildroot, Ubuntu, and other systems, 5-point touch
• ESP32-P4 Supports LVGL GUI programs, 5-point touch
• RK3576 Supports Buildroot, Debian, Ubuntu, Android, and other systems, 5-point touch

LCD Parameters:

• Model : 4-DSI-TOUCH-A : 4.3-DSI-TOUCH-A
• Resolution : 480 × 800 pixels (H × V)
• Contrast Ratio : 800:1 : 1000:1
• Display IC : ST7701S
• Touch IC : GT911
• Communication Interface : MIPI 2-lane
• Brightness : 350cd/m² : 500cd/m²
• Outline Dimensions : 108.30 × 65.10 (mm) : 116.50 × 68.90 (mm)
• Display Area : 86.40 × 51.84 (mm) : 93.60 × 56.16 (mm)

Connection Examples:

Working with Raspberry Pi 5

Working with Raspberry Pi 4B

Working with ESP32-P4-Module-DEV-KIT

Working with Luckfox Omni3576

Working with Luckfox Lyra

IPS Display Panel:

Excellent Display Performance With 170° Wide Viewing Angle

5-Point Capacitive Touch:

up to 5-point touch, depending on the operating system

up to 6H hardness toughened glass panel

Optical Bonding, display well and Dust-Resistant

Interface Introduction:

Outline Dimensions:

Support touch screen customization:

Support the following ways to customize the touch screen display in bulk order

Over a decade:

Waveshare grows with display

Resources & Services:

Documentations:

• 4 wiki
• 4.3 wiki

Package Includes:

• 4-DSI-TOUCH-A
• 1 x  4-DSI-TOUCH-A
• 1 x MIPI-DSI-Cable-12cm
• 1 x MX 1.25 2PIN to 2.54 3PIN cable 110mm
• 1 x FFC 22PIN cable ~200mm (opposite sides)
• 1 x FFC 22PIN cable ~100mm (opposite sides)
• 1 x MX1.25 2PIN to MX1.25 4PIN cable ~150mm
• 1 x Standoffs
• 4.3-DSI-TOUCH-A
• 1 x 4.3-DSI-TOUCH-A
• 1 x MIPI-DSI-Cable-12cm
• 1 x MX 1.25 2PIN to 2.54 3PIN cable 110mm
• 1 x FFC 22PIN cable ~200mm (opposite sides)
• 1 x FFC 22PIN cable ~100mm (opposite sides)
• 1 x MX1.25 2PIN to MX1.25 4PIN cable ~150mm
• 1 x Standoffs
