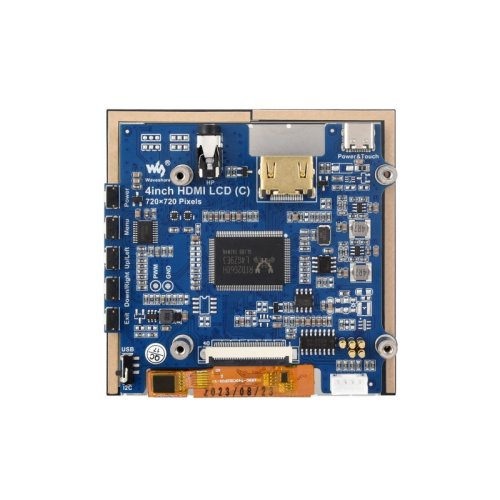

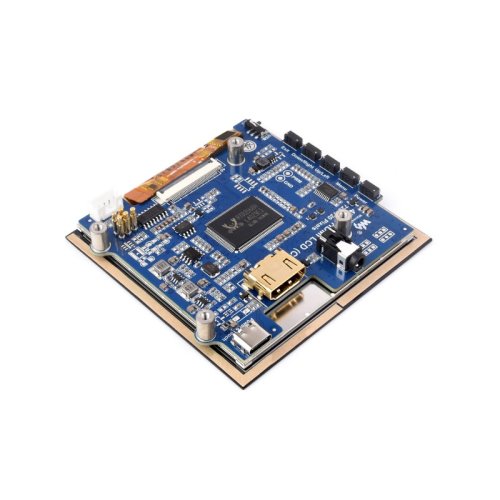

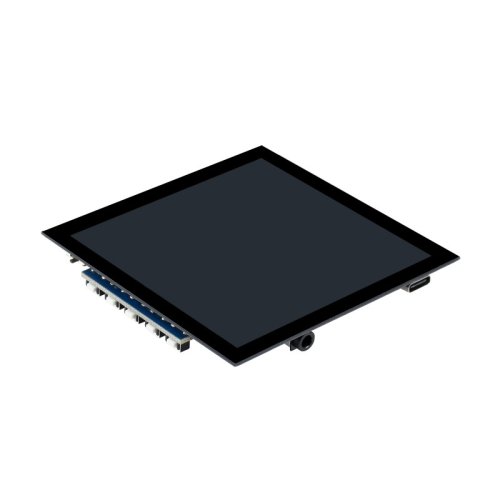

4″ HDMI Touch Display:

                   Size                               Resolution                  Display Interface                Display Panel                    Viewing Angle

                    4″                                   720×720                            HDMI                                     IPS                                    170°

            Touch Type                       Touch Points                      Touch Port 1                     Touch Port 2                        Touch Panel

            Capacitive                            5-Points                              USB-C                                      I2C                          Toughened Glass

        Touch Panel Tech                    OSD Menu                    Audio Output 1                 Audio Output 2

       Optical Bonding                Brightness/Contrast                3.5mm Jack                        4PIN Header

Device and System Support:

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie

Driver free for USB-C touch

Config file is required for I2C touch

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

for Jetson Nano and PC, only USB-C touch is available

Connection Examples:

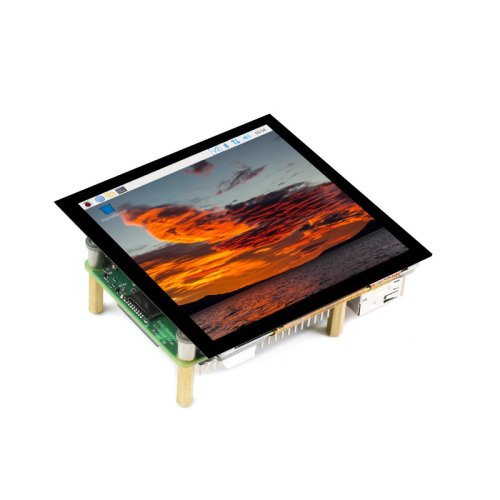

Working with Raspberry Pi 5

Working with Raspberry Pi 4:

Working with Raspberry Pi 3B+:

Working with Jetson Nano AI computer:

Working with mini PC:

Display:

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) Optical Bonding screen, better display experience, dust-proof.

Design features:

Appearance and Dimensions:

Resources & Services:

Documentations:

• Wiki

Product Certification:

HDMI Certified

Support touch screen customization:

Support the following ways to customize the touch screen display in bulk order

Over a decade:

Waveshare grows with display

Package Inlcudes:

• 1 x 4inch HDMI LCD (C)
• 1 x HDMI Adapter (C)
• 1 x HDMI Adapter (B)
• 1 x HDMI cable
• 1 x USB-A to USB-C cable
• 1 x Screws pack
