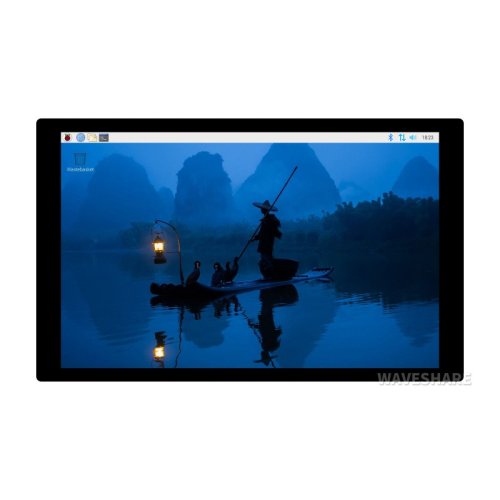

8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

• Size:8
• Resolution:800×1280
• Display Interface:DSI
• Display Panel: IPS
• Viewing Angle:178°
• Touch Type: Capacitive
• Touch Points:10-Point
• Touch Panel: Toughened Glass
• Touch Panel Tech: Optical Bonding
• Brightness: 400cd/㎡

The display orientation is portrait by default, with 800×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

• Raspberry Pi: Supports Raspberry Pi OS, 10-point touch
• ESP32-P4: Supports LVGL GUI programs, up to 10-point touch
• RK3506: Supports Buildroot / Ubuntu, etc. 10-point touch
• RK3576: Supports Buildroot / Debian / Android, etc. 10-point touch

connection examples

Connecting to Raspberry Pi 5

Connecting to ESP32-P4-NANO

Connecting to Luckfox-Omni3576 Development Board

Connecting to Luckfox Lyra Development Board

for reference only, the above controller boards or hosts are NOT included

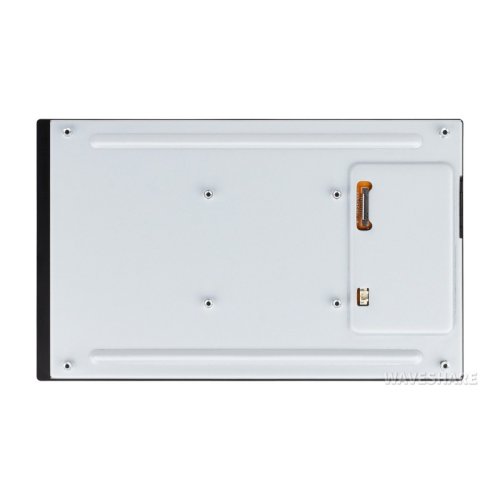

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 11.6mm

10-Point Capacitive Touch

• up to 10-point touch, depending on the operating system
• up to 6H hardness toughened glass panel
• Optical bonding, provides clear image, dustproof

Supports backlight adjustment via software

interface definition

outline dimensions:

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade

Waveshare grows with display

Documentations:

• Wiki

Package Includes:

• 1 x 8-DSI-TOUCH-A
• 1 x MIPI-DSI-Cable-12cm
• 1 x MX 1.25 2PIN to 2.54 3PIN cable
• 2 x FFC 22PIN cable ~200mm
• 1 x MX 1.25 2PIN to MX1.25 4PIN cable ~150mm
• 1 x Screws pack
