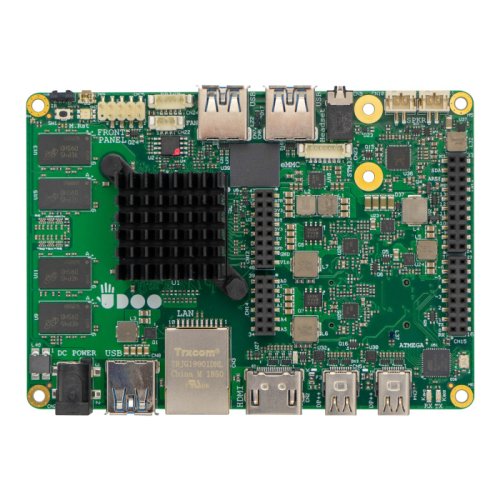

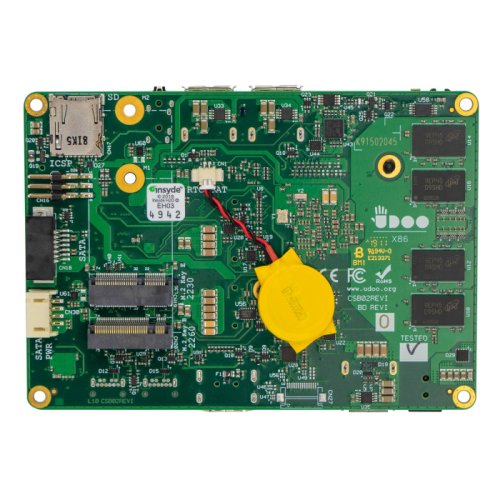

UDOO X86 II is the New PC: the most powerful x86 maker board ever and an Arduino™ Leonardo-compatible platform, all embedded on the same board.

On UDOO X86 II you can run all the software available for the PC world, from gaming to video streaming, from graphical editors to professional development platforms, plus all the software or the Arduino™ Leonardo world, including all the sketches, libraries and the official Arduino™ Leonardo IDE.

You won’t ever worry about lack of drivers or stuff like that. This is a true next-generation computer.

It is based on Quad Core 64-bit new-generation x86 processors made by Intel®, designed for the PC domain. Prodigious processors concentrated in 14 nm, with an amount of energy consumption of 5 or 6 Watt.

The board can be powered by a DC-jack with a standard 5.5mm/2.1mm barrel jack, internal positive, Voltage 12V ± 5%. This is not included. Alternatively, power can be provided though the VIN pin located on the header.

Screw/Spacers for M.2 SSD and Wifi/BT already included.

Specifications:

• Processor: Intel Pentium N3710 CPU, up to 2.56 GHz
• Cores: 4
• Memory: 8 GB DDR3L Dual Channel
• Graphics: Intel HD Graphics 405, up to 700 MHz, 16 execution units
• Video Interfaces: 1x HDMI, 2x miniDP++ connectors
• Mass Storage: 32 GB eMMC, SATA connector, M.2 Key B SSD slot, Micro SD card slot
• Networking: Gigabit Ethernet, M.2 Key E slot for optional wireless modules
• USB: 3x USB 3.0 Type-A
• Multimedia: Hardware video decode/encode support for H.265/HEVC, H.264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8
• Audio: HD audio codec ALC 283CG, microphone/headphone combo, preamplified speaker output, S/PDIF output
• Other Interfaces: IR, LPC, 2x I2C, GPIOs, touchscreen, expansion connector, RTC battery connector
• Power Supply: 12V 3A DC input
• Operating System: Windows 10/8.1/7, Linux for x86, Android
• Dimensions: 120 x 85 mm (4.72 x 3.35 inches)
• Microcontroller: ATmega32U4
• Arduino Interfaces: 1x UART, 1x I2C, 1x SPI
• Arduino Pinout: Arduino Leonardo-compatible, 5V compatible
• Digital Pins: Up to 23 digital I/O, 7 PWM
• Analog Pins: 12 analog inputs

Package Includes:

• - 1x UDOO X86 ULTRA
• - 1x M.2 Key B (2260) kit:
• 1x flat head screw M3x12mm
• 1x round spacer 6mm
• 1x washer 0.5 mm
• 1x nut M3
• - 1x M.2 Key E (2230) kit:
• 1x flat head screw M3x8mm
• 1x round spacer 2mm
• 1x washer 0.5 mm
• 1x nut M3
