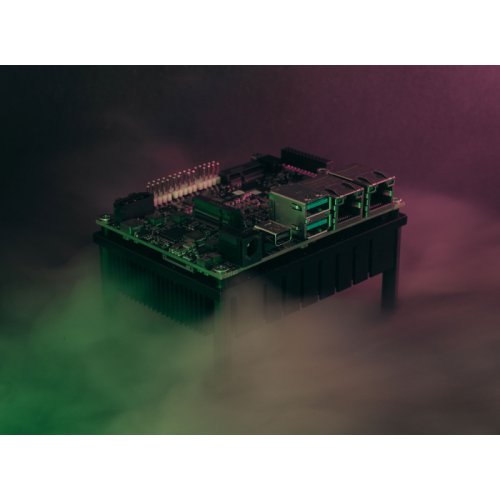

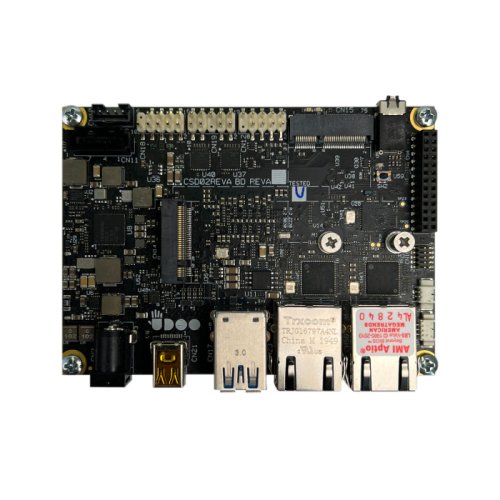

UDOO Vision is the Computer Vision and Artificial Intelligence mini PC based on Intel® Atom® x5-E3940 with 4GB Quad-Channel LPDDR4 and 32GB eMMC 5.0, plus an Arduino-Leonardo microcontroller.

• Processor: Intel® Atom™ x5-E3940
• Cores: Quad Core @ 1.6GHz, 2MB L2 Cache, 9.5W TDP
• Memory: 4GB - 32-bit Quad-Channel LPDDR4
• Graphics: Integrated Intel® HD Graphics 500 up to 600MHz
• Video Interfaces: 1x mini DP++, 1x eDP Connector
• Mass Storage: M.2 Key B Slot for optional SSD SATA Gen3, Micro SD card slot, 32GB eMMC 5.0
• Networking: 2x Gigabit Ethernet LAN interface, M.2 Key E Slot for optional WLAN/BT, M.2 Key B Slot for optional WWAN (miniSIM slot included)
• Usb: 2x USB 3.0 type-A sockets, 2x USB 2.0 internal header
• Multimedia: HW video decode: HEVC (H.265), H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG; HW video encode: HEVC (H.265), H.264, MVC, VP8, VP9, JPEG/MJPEG
• Audio: HD audio codec CS4207, Microphone + Headphone combo TRRS connector
• Other Interfaces: 2x Serial ports (RS-232/RS-422/RS-485) Front Panel, 8x GPIOs connector
• Power Supply: DC power jack 12V
• Operating System: Windows 10, 8.1, Any Linux Distribution for X86 64bit platform, Android
• Dimensions: picoITX form factor: 100x72mm (3.93” x 2.83”)
• Microcontroller: ATmega32U4 - 8-bit AVR Microcontroller
• Arduino Other Interfaces: 1 UART, 1 x I2C, 1 x SPI
• Arduino Pinout: Female dual row pin header 5V compliant
• Digital Pins: Up to 18 x digital I/O (7 PWM)
• Analog Pins: 12 x Analog input
