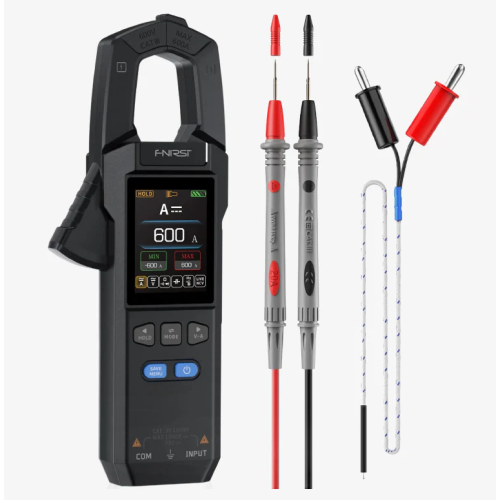

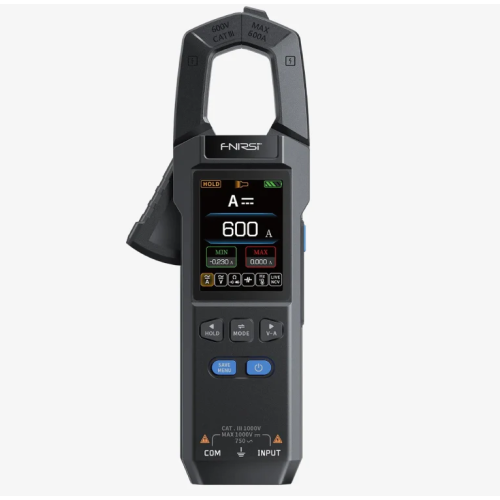

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

Features

High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
Wide Measurement Range: Supports up to 750V voltage and 600A current.
High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
Intuitive Interface: New UI with data curve display for easy reading at a glance.

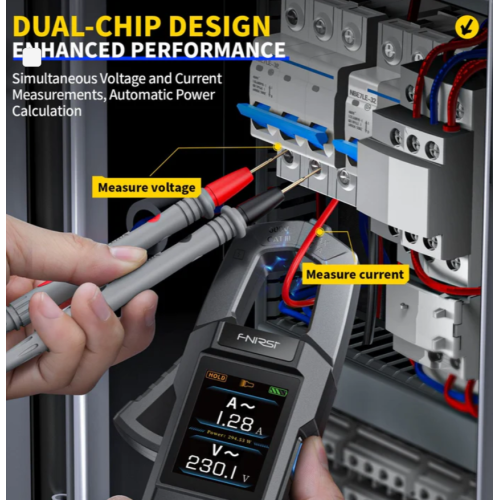

Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.

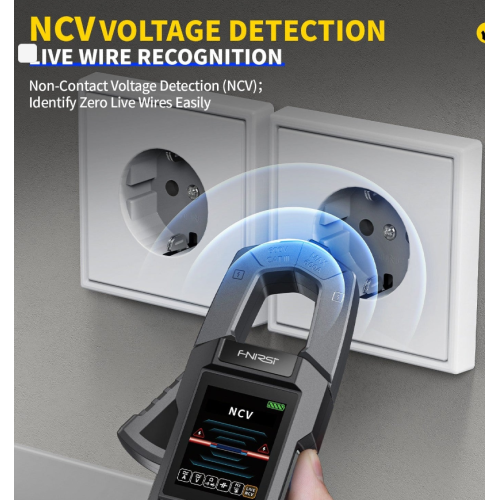

NCV Function: Non-contact voltage measurement and zero/fire line identification.
Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
Temperature Unit Switching: Easily switch between temperature units (℃/℉).
Adjustable Brightness: Screen brightness is adjustable for various environments.
Firmware Upgradeable: Supports firmware updates to enhance functionality.

Specifications

Brand : FNIRSI : Model : DMC-100
Screen : 2.0'' TFT color screen : Screen Resolution : 240*320 pixels
Battery : 3.7V, 1500mAh Lithium Battery : Charging Specification : USB Type-C, 5V/1A
Maximum Jaws Size : 25mm : Temperature Unit : ℃/℉
Product Size : 193x74x32mm : Product Weight : 194g
DC Voltage : 9.999V / 99.99V / 999.9V : AC Voltage : 9.999V / 99.99V / 750.0V
DC & AC Current : 99.99A / 600.0A : Resistance : 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Capacitance : 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF : Frequency : 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature : -55~1300℃ / -67~2372℉ : Diode Measurement : Support
On-off Test : Support : Non-Contact Voltage Check (NCV) : Support
Zero Fire Wire Check : Support : Measuring Mode

1. General Measurement
2. Waveform Display
3. Power Measurement

Measurement Gear : Manual Adjustment : Torch : Support
Data Zeroing : Support : Maximum/Minimum Value : Support
Waveform Display : Support : Power Calculation : Support
Data Hold : Support : Data Storage and Viewing : Up to 30 groups of data
Language : Chinese / English : Brightness Adjustment : 10-speed adjustment
Auto Power Off : OFF / 5min / 15min / 30min : Firmware Upgrade : Support
AC Current : 4A / 40A / 600A : Resistance : 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
