RPLIDAR A2M12 is a 360-degree triangulation laser sensing scanner that samples at up to 16 kHz, capable of generating 2D point cloud map information for a 12m radius, within low precision, and running for up to 5 years. This next-generation low-cost, high-performance laser scanner will be your great instrument for in-home robots, 3D modeling, etc.

RPLIDAR A2M12 applies the Triangulation Laser Sensing theory that emits and receives laser to measure the distance by calculating the receiving time. By embedded high-speed RPVision3.0 range engine, the RPLIDAR A2M12 offers 360 degrees, 12M radius, 16 kHz light detection and ranging, 0.225° angular resolution(10Hz) with 5 ~ 15Hz adjustable rotational speed, low sensing precision, 5 years reliable operation for the generation of 2D point cloud map information.

Features:

360 Degree Triangulation Laser Sensor Ranging Scanner: Generate 2D point cloud map information for 12m radius, 0.225° angular resolution
Distinguished Sampling Capability: Equip high-speed RPVision3.0 range engine, for up to 16KHz measurement frequency, 5 ~ 15Hz adjustable rotational speed
Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running
Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating

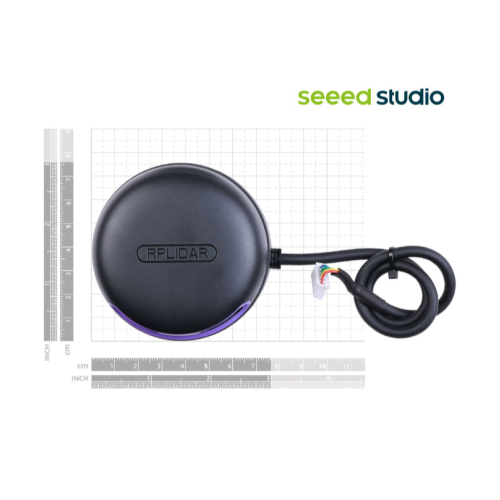

Cup-size Design: Light & portable, 4cm ultra-thin shell, even can be placed on floor mopping robot

With the new brushless motor non-contact drive, the RPLIDAR A2M12 works with ultra-low noise. Additionally, its output laser power is as safe as IEC-60825 Class One eye safety. All of these make it an excellent tool for you to conduct positioning and obstacle detection. Being cup-size and light as 190g, it can be placed anywhere in your home or deployed on a domestic robot like a floor mopping robot, or home care robot.
