Measure the magnetic field in three axes !

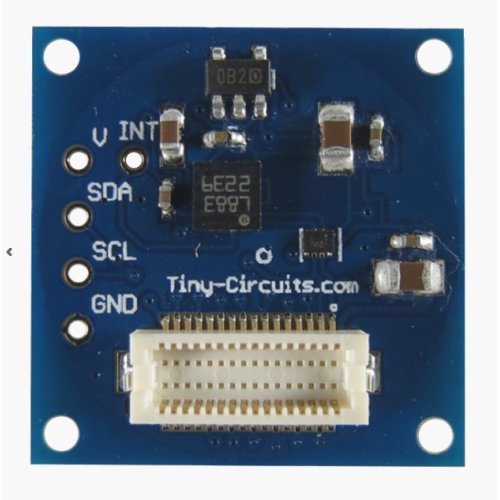

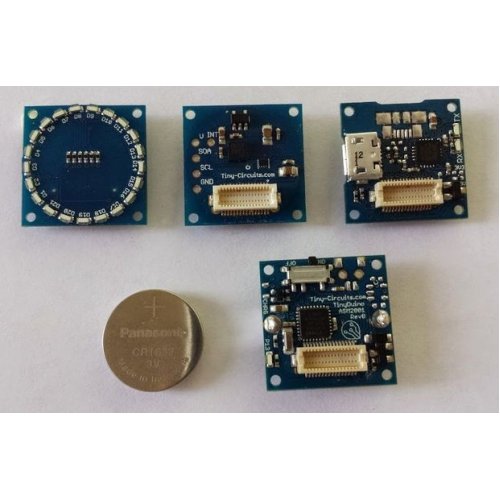

This TinyShield features the high performance and low power Honeywell HMC5883L 3-axis compass. The HMC5883L includes state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.

The Compass TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range between 3 – 5V.

You can also use this shield without the TinyDuino – there are 0.1″ spaced holes for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.

Specifications:
  • Ultra compact size and weight (smaller than a US Quarter!)
  • Square Version: 20mm x 20mm (.787 inches x .787 inches)
  • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
  • Weight: TBD grams (TBD ounces)
  • Honeywell HMC5883L Compass
  • 3-axix (X, Y & Z)
  • Digital resolution: 12bit (2 milli-gauss Field Resolution in ±8 Gauss Fields)
  • 1° to 2° Degree Compass Heading Accuracy
  • Wide Magnetic Field Range (+/-8 Oe)
  • Low Power: 100uA
  • I2C Mode used
  • Arduino pins A4 and A5 are used by this shield
  • Built in level shifters and linear power supply to allow your TinyDuino to run up to 5.0V operation.

Resources :

For more details click here.

Write a review

Please login or register to review

TinyShield Compass

  • Brand: TinyCircuits
  • Product Code:TinyC-Shield-Compass
  • Reward Points:13
  • Availability:In Stock
  • रo 1,278.00

  • Ex Tax:रo 1,278.00
  • Price in reward points:1278

  • 10 or more रo 1,267.00
  • 20 or more रo 1,256.00
  • 50 or more रo 1,246.00
