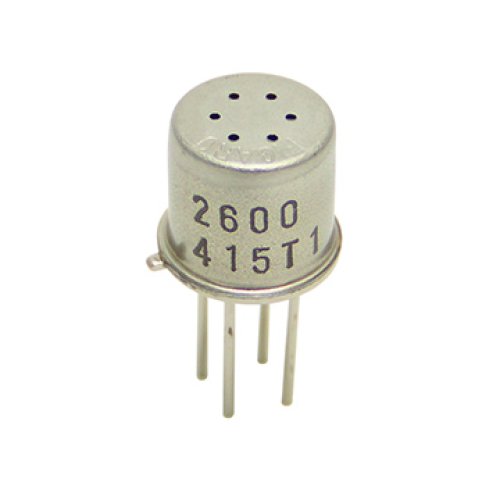

Air Quality Sensor - TGS2600
Features
* Low power consumption
* High sensitivity to gaseous air contaminants
* Long life and low cost
* Uses simple electrical circuit
* Small size
Application examples
* Air cleaners
* Ventilation control
* Air quality monitors
Specifications
Target gases |
Air contaminants
(hydrogen, ethanol, etc.) |
Typical detection range |
1 - 30ppm of H2 |
Sensing principle |
MOS type
|
Driving voltages |
Heater Voltage:5.0V
Circuit Voltage:5.0V |
Power consumption |
210mW |
Dimensions |
φ9.2×7.8mm |
Weight |
Approx. 1.1g |
Product Information
Technical Information
Air Quality Sensor - TGS2600
- Product Code:PRC-Sensor-Air-Quality-TGS2600
- Reward Points:6
- Availability:Out Of Stock
-
रo 607.70
- Ex Tax:रo 515.00
- Price in reward points:585
