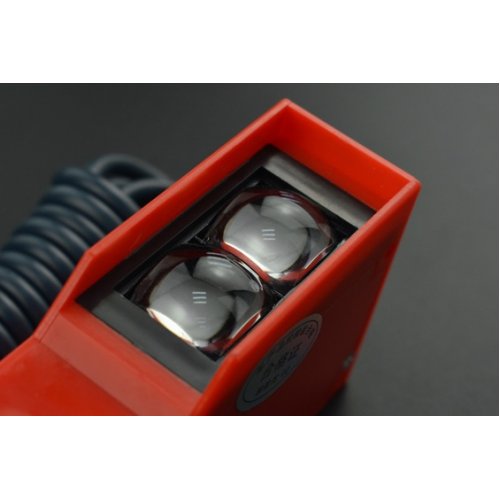

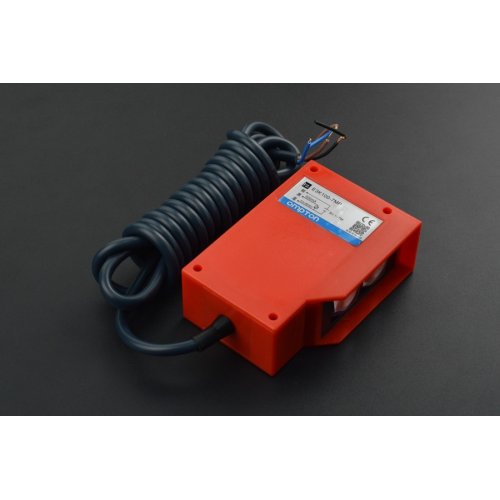

This diffuse reflection infrared photoelectric switch can detect any opaque object within 0-7m( The real detection distance can be greater than 7m in our test). With a 6-36V power supply, the sensor has a signal indicator for real-time status feedback, and a button for adjusting detection distance(Clockwise to increase, counterclockwise to reduce). It is also waterproof and features polarity protection, and short circuit protection, which can be used in automatic car washing device, security detection, automatic access control lever lifting, intelligent induction furniture.

• Power Supply Voltage: 6-36 V
• Detection Distance: 0-700 cm
• Response Time: 2.5 ms (1 second=1000 ms)
• Detection Object: any opaque object
• Output Form: switching value
• Output Current: Max 300 mA
• Waterproof Rating: IP67
• Protection Level: IP54
• Shell Material: ABS plastic
• Protection Function: polarity protection, short circuit protection
• Power Cord Length: 2 m
• Standard Detection Object: 5x5 white matt paper
• Size: 69x100x37 mm/ 2.72x3.94x1.46

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

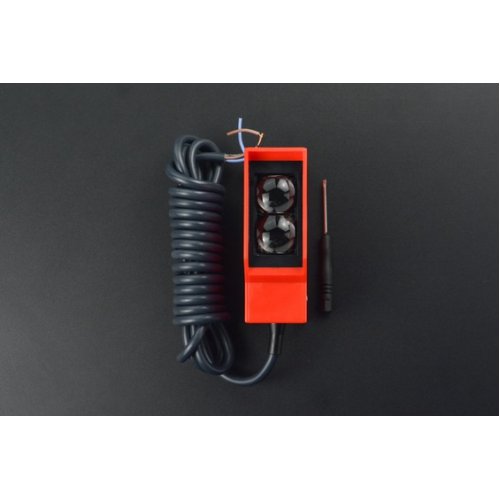

• 1 x Diffuse Reflection Photoelectric Switch (0-7m)
• 1 x Screwdriver
