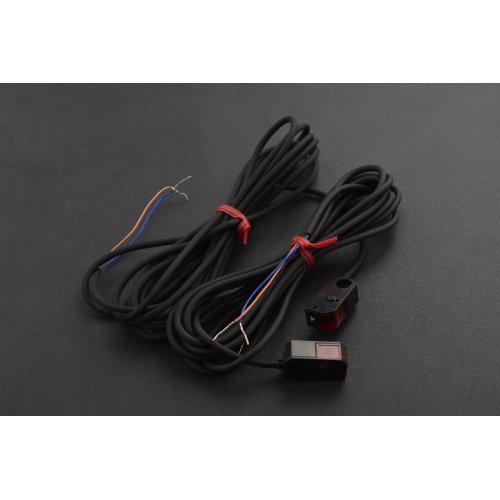

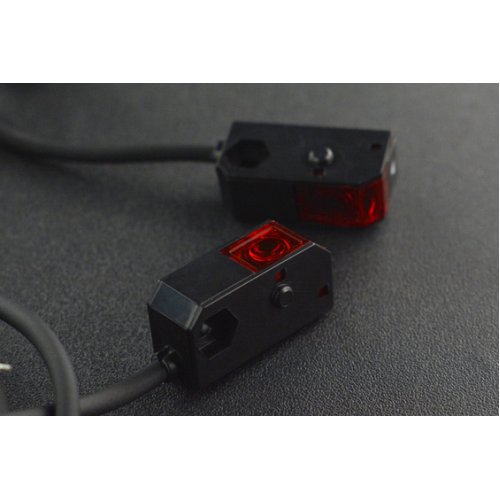

This Infrared Photoelectric Switch is a pair of photoelectric switches with a detection distance of up to 1.5m and a fast and stable response time of less than 1ms. The module consists of a transmitter and a receiver. The transmitter contains an infrared diode that can emit infrared rays with strong penetration, thereby ensuring that the sensor can achieve stable signal reception regardless of weather, which greatly improves its measurement accuracy.
This switch uses a DC voltage of 9-24V, which can be widely used in machinery automation, automobile anti-theft and other industries for detection, counting, gate passing, or other industrial automation sensing conditions, and can also be used in intelligent robot competition for speed detection and timing, etc.
Specifications:
- Voltage: 9-24V
- Output Form: three-wire DC
- Output Type: NPN
- Detection distance: 150cm
- Output current: 200mA
- Shell Material: polymer
- Operating Temperature: -20℃~65℃
- Operating Frequency: 1000Hz
- Response Time: ＜1ms
- Wiring: blue-GND, brown-VCC, black-output signal
- Dimension: 22.4 x 11.2 x 8.3mm/0.88 x 0.44 x 0.33”

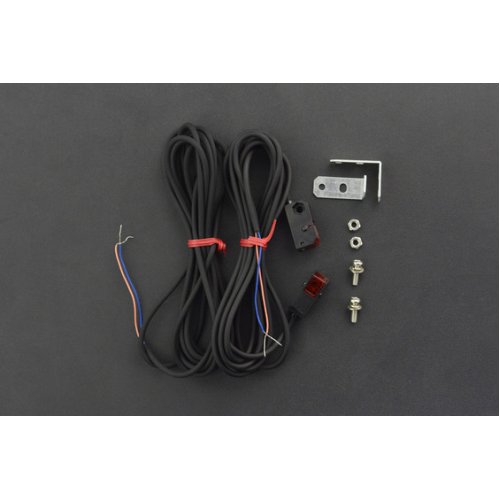

Package Includes:
- 1 x Infrared Photoelectric Switch
- 1 x Accessories Packet
Infrared Photoelectric Switch
- Brand: DFRobot
- Product Code:DFR-Photoelectric-Switch
- Reward Points:17
- Availability:In Stock
- रo 1,934.02
-
रo 1,679.14
- Ex Tax:रo 1,423.00
- Price in reward points:1694
-
- 8 or more रo 1,926.94
- 15 or more रo 1,918.68
- 40 or more रo 1,867.94
