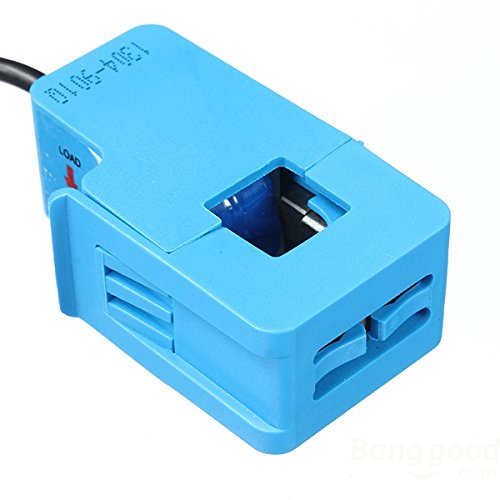

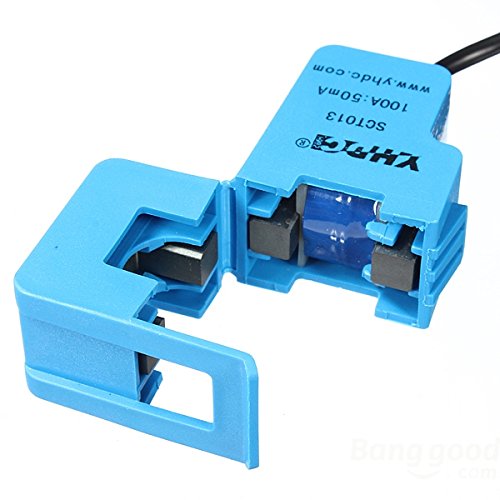

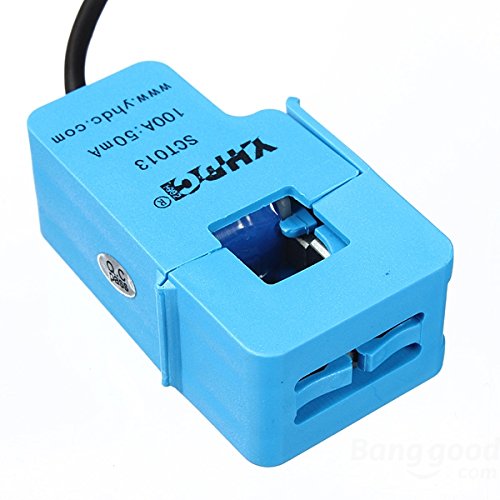

Non-invasive Split Core Current Sensor !
Specifications:
-
Opening size:13mmx13mm
-
Non-linearity 3%(10%-120% rated input current)
-

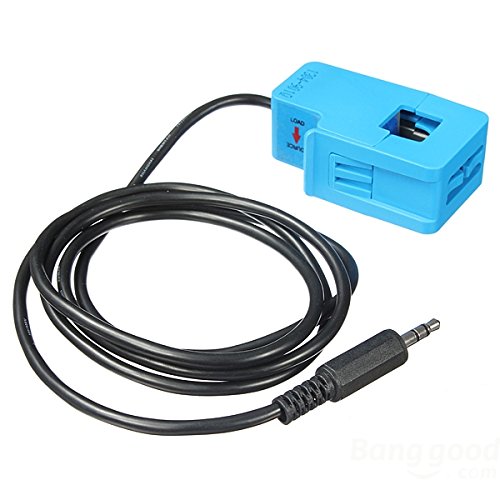

1.5m leading wire,Φ3.5 3 core plug standard output.
-
Two form of output current, voltage (voltage output built-in the sampling resistor).
-
Core material: ferrite
-
Mechanical strength: opening and closing times, no less than 1000 times (20 C)
-
Safety indicators: Dielectric strength 6000V AC/1min
-
Meet UL94-V0 flame retardant properties
-
Operating Temperature: -25 C ~ +70 C
Applications: For AC motors, lighting equipment, air compressors and other current measurement,monitoring and protection.
Packing content:
-
1 x Split Core Current Transformer SCT-013-000
Non-invasive Split Core Current Transformer 30A/ 100A SCT-013-000
- Product Code:PRC-Non-Invasive-Current-Sensor-SCT-013-000
- Reward Points:7
- Availability:In Stock
-
रo 772.90
- Ex Tax:रo 655.00
- Price in reward points:655
