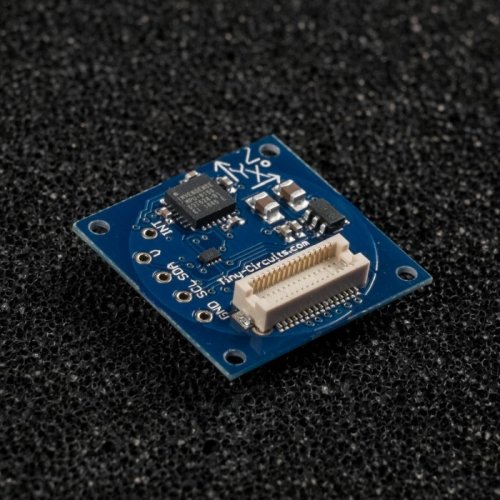

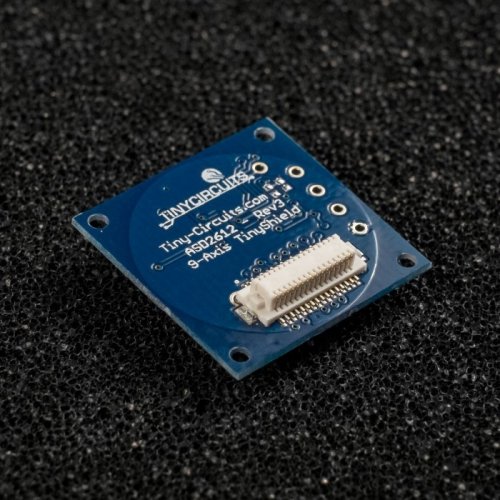

TinyShield 9-Axis IMU

TinyShield 9-Axis IMU
TinyShield 9-Axis IMU
Scroll and tap to view images
TinyShield 9-Axis IMU TinyShield 9-Axis IMU TinyShield 9-Axis IMU TinyShield 9-Axis IMU TinyShield 9-Axis IMU TinyShield 9-Axis IMU
Brand: TinyCircuits
Product Code: TinyShield-9-Axis-IMU
Reward Points: 20
Availability: In Stock
Price: रo 1,985.00
Price in reward points: 1985
Qty:     - OR -   Add to Wish List
Add to Compare
This TinyShield lets you measure 9 degrees of freedom (9DOF) with your TinyDuino and features the ST LSM9DS1 - a system-in-package featuring a 3D digital linear acceleration sensor, a 3D digital angular rate sensor, and a 3D digital magnetic sensor.

The LSM9DS1 has a linear acceleration full scale of ±2g/±4g/±8/±16 g, a magnetic field full scale of ±4/±8/±12/±16 gauss and an angular rate of ±245/±500/±2000 dps.

The 9 Axis TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range up to 5V.



TECHNICAL DETAILS

To see what other TinyShields this will work with or conflict with, check out the TinyShield Compatibility Matrix

ST LSM9DS1 9-Axis DOF Specs

  • 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
  • ±2/±4/±8/±16 g linear acceleration full scale
  • ±4/±8/±12/±16 gauss magnetic full scale
  • ±245/±500/±2000 dps angular rate full scale
  • 16-bit data output
  • “Always-on” eco power mode down to 1.9 mA
  • Embedded temperature sensor
  • Embedded FIFO
  • Position and motion detection functions
  • Click/double-click recognition

TinyDuino Power Requirements

  • Voltage: 3.0V - 5.5V
  • Current: 4.6mA (Normal Mode).  Due to the low current, this board can be run using the TinyDuino coin cell option

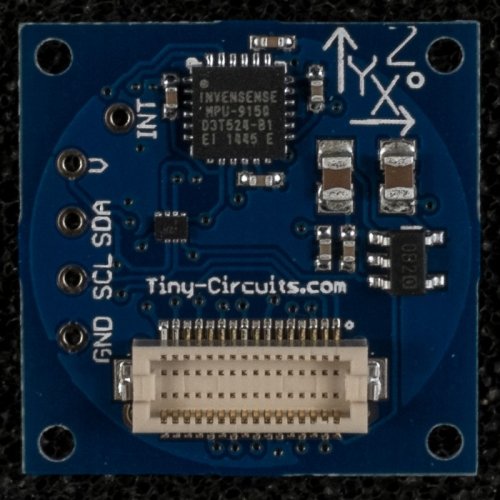

Pins Used

  • A5/SCL - I2C Serial Clock line
  • A4/SDA - I2C Serial Data line

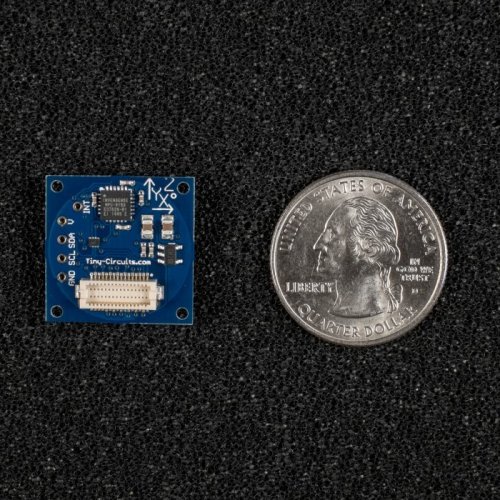

Dimensions

  • 20mm x 20mm (.787 inches x .787 inches)
  • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
  • Weight: 1 gram (.04 ounces)
