Light intensity sensors are used to measure ambient illuminance in a given environment. This can have many important applications. Light directly impacts the growth of plants, so in agriculture, it can run manage farms and greenhouses more efficiently with real-time light data and analysis. Operators of electric grids and solar farms can use the data to predict the available electricity and run their operations more efficiently.

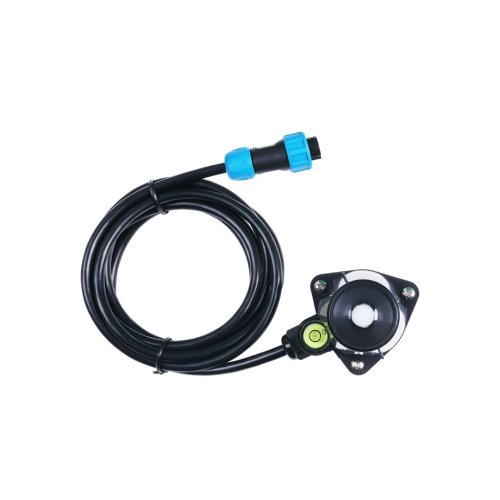

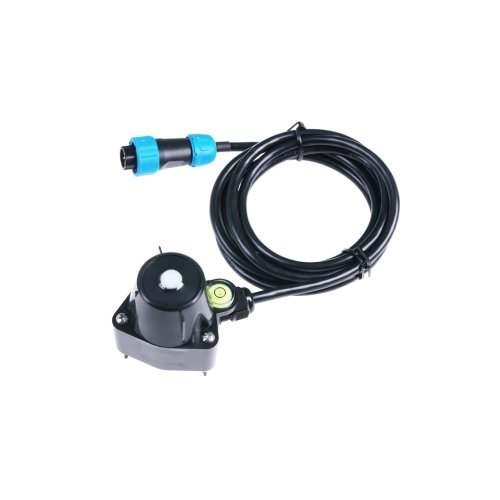

This Light Intensity Sensor (S-Light-01) is ideal for this kind of environment. It is IP66 rated, waterproof, and dustproof, and has no problem working under harsh conditions like solar farms, outdoor agricultural farms, as well as greenhouses. Each sensor is calibrated and offers high accuracy and consistency.

This sensor support two output options MODBUS-RTU RS485 protocol or analog voltage (0-2v) and can be used with a data logger conveniently.

Features:

Wide-range measurement: up to 200000lux
Output interface with RS485, Voltage
Level indicator and spring-loaded for installation
IP66 rated: waterproof & dustproof, suitable for outdoor applications
High accuracy and consistency with excellent stability
Reverse power protection and built-in TVS/ESD protection

Specifications:

Output Interface: RS485 Modbus-RTU, Analog Voltage 0-2V (Output resistance ~0ohm)
Power Supply: 3.9-30V/DC
Power Consumption: 7mA@24V DC
Illuminance Range: Range:0～200000 Lux, Accuracy:±6% , Resolution:1lux
Direction Error: 30°±3%,60°±6%,80°±24%（Cosine Characteristics）
IP Ratings: IP66
Operating Temperature: -40~85°C
Installation: Screw hole * 3
Cable Length: 2 meters

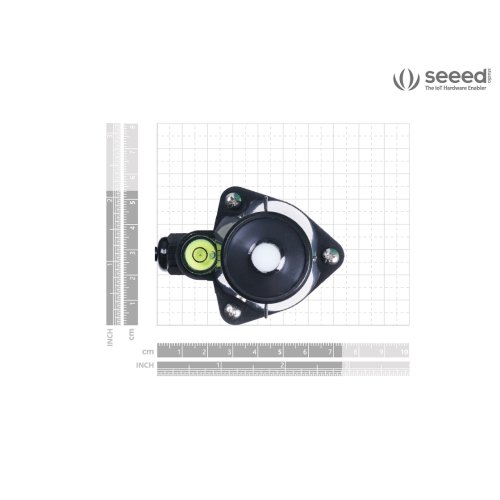

Dimension: 75*55*58mm

Applications:

Weather stations
Solar farms
Outdoor Farming
Greenhouse
Research

Warranty: 12 months

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Industrial Light Intensity Sensor, MODBUS-RTU RS485 &0-2V (S-Light-02) with Waterproof Aviation Connector

Industrial Light Intensity Sensor, MODBUS-RTU RS485 and 0-2V (S-Light-02) with Waterproof Aviation Connector

Brand: Seeed Studio
Product Code:Seeed-S-Light-02-Sensor
Reward Points:66
Availability:In Stock
