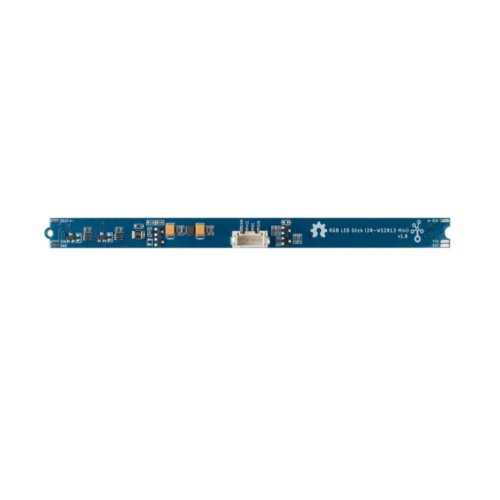

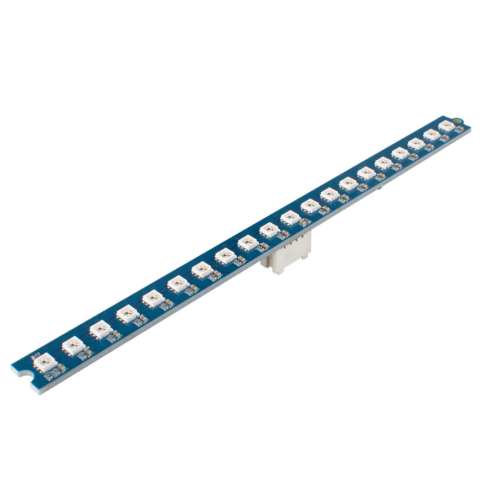

Grove - RGB LED Stick (20-WS2813 Mini) is a cost-effective full color LED stick with 20 chainable and programmable WS2813 mini LEDs.and with only one signal pin you can control all 15 LEDs easily. You can use this little stick to create hundreds and thousands of light effects.

Grove - RGB LED Stick is integrated with 20 full-color RGB LEDs with 2KHz refresh frequency, and Each pixel gray levels are 256 on the stick. All the LEDs are WS2813 Mini, which is an intelligent control and highly cost-effective LED. The WS2813 supports signal break-point continuous transmission, which means you can continue to use other LEDs with one led being broken.

WS2813-Mini is an intelligent control LED light source that the control circuit and RGB chip are integrated with a package of 3535 components. It's internal includes an intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves a highly consistent color effect. Dual-signal wires version, any pixel’s failure won't affect signal transfer and the total emitting effect.

You can use this little stick to create hundreds and thousands of light effects, you can use it on Christmas or Halloween decorations even your light shows!

Signal break-point continuous transmission

As long as not two or more adjacent LEDs are broken, the remaining LEDs will be able to work normally

Specifications:

Operating Voltage:3.3V / 5V
Operating Temperature:-25℃ ~ +85℃
Storage Temperature:-40℃ ~ +105℃
RGB Channel Constant Current:16mA
Interface:Digital
Size:L: 147mm W: 10mm H: 10mm

Applications:

Guardrail tube series, point light display series, flexible/rigid strips series, module series applications.
Lighting stage costumes, innovative gadgets or any other electronic products.

Hardware Overview:
