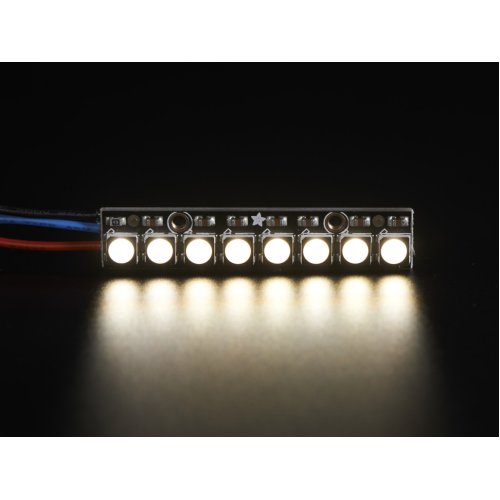

The NeoPixel is 'split', one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles an egg yolk. Lit up these are insanely bright (like ow my eye hurts) and can be controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + white dots to your project!

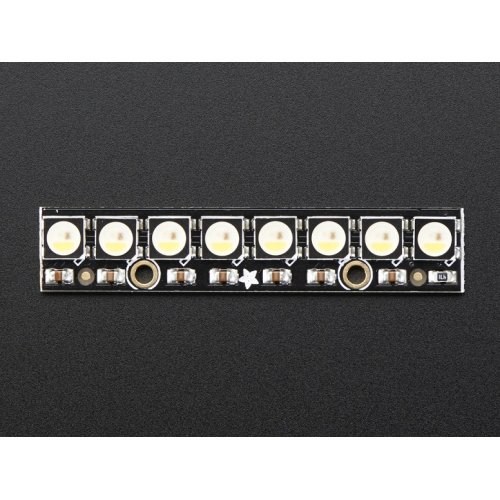

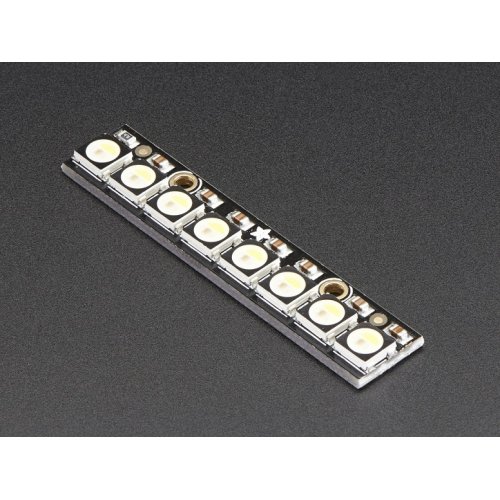

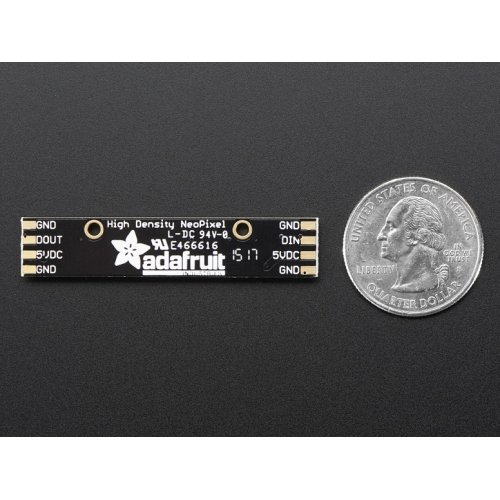

We crammed 8 of the tiny 5050 (5mm x 5mm) smart RGBW LEDs onto a PCB with mounting holes and a chainable design. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.

Documents:
Warranty : 30 Days

Package Includes:
  • 1 x NeoPixel Stick - 8 x 5050 RGBW LEDs

Write a review

Please login or register to review

Adafruit 2868 / 2869 / 2867 NeoPixel Stick - 8 x 5050 RGBW LEDs

  • Brand: Adafruit
  • Product Code:Ada-NeoPixel-Stick
  • Reward Points:9
  • Availability:In Stock
  • रo 1,012.44

  • Ex Tax:रo 858.00
  • Price in reward points:905

  • 50 or more रo 886.18
  • 180 or more रo 882.64
