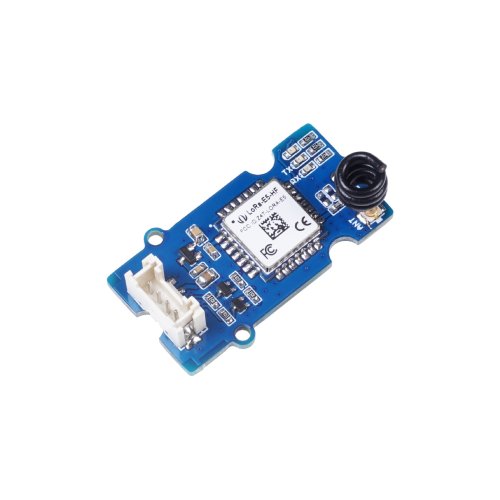

LoRa-E5 LoRaWAN STM32WLE5JC module is the major functional part integrated into Grove - LoRa-E5. It is a LoRaWAN module that embedded with ARM Cortex M4 ultra-low-power MCU core and LoRa SX126x, as the world-first combo of LoRa RF and MCU chip into one single tiny module, it supports (G)FSK, BPSK, (G)MSK, and LoRa modulations, and is FCC, CE certified. Grove - LoRa-E5 features extremely compacted size, ultra-low power consumption, low cost, and amazing performance.

Features:

LoRa-E5 (STM32WLE5JC) embedded
Support LoRaWAN protocol on EU868 frequency band
Ultra-long transmitting range up to 10km (Ideal value in open space)
Easy control by AT command via UART connection
Rapid prototyping with plug-and-play Grove interfaces
Ultra-low power consumption and high performance

Specifications:

Voltage Supply: 3.3V/5V
Power Output: Up to +20 dBm at 3.3V
Working Frequency 868/915MHz
Protocol LoRaWAN
Sensitivity -116.5dBm ~ -136dBm
Modulation LoRa, (G)FSK, (G)MSK and BPSK
Current Only 60uA in sleep mode

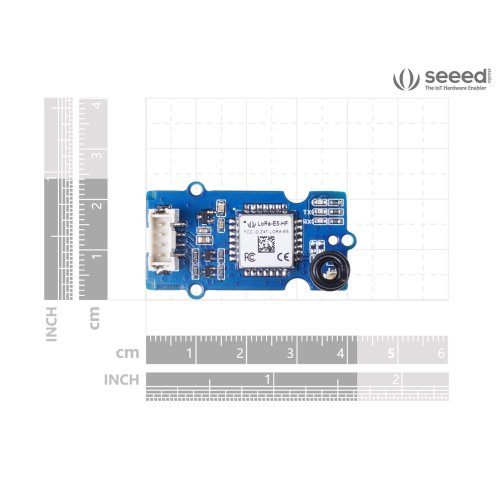

Size 20*40mm
Working Temperature -40℃ ~ 85℃

Documents:

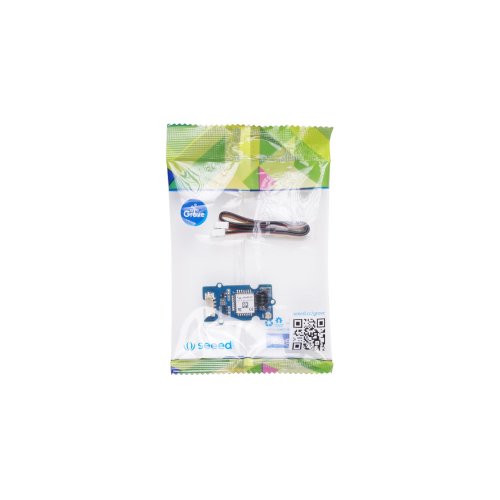

Package Includes:

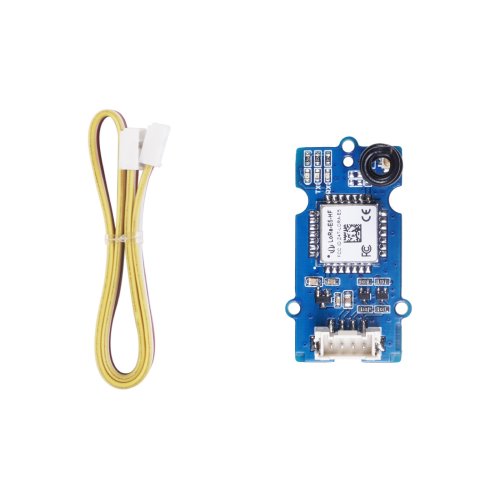

1 x Grove - LoRa-E5 PCBA
1 x Grove Universal Cable

Grove - LoRa-E5 (STM32WLE5JC), EU868, LoRaWAN supported

Brand: Seeed Studio
Product Code:Seeed-Grove-LoRa-E5
Reward Points:20
Availability:In Stock

रo 2,343.48
Ex Tax:रo 1,986.00
Price in reward points:1986
75 or more रo 1,788.88

Qty

0 reviews / Write a review
