Wio-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal Long Range wireless IoT device with a long-distance transmission range.
This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. With its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.
With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.
Features:
- High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
- Long Distance Use:158dB link budget
- Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
- Use-friendly: It features fully lead-out GPIOs, as well as convenient RESET and BOOT buttons on board.
- FCC, CE, IC and Telec Certified
Specifications:

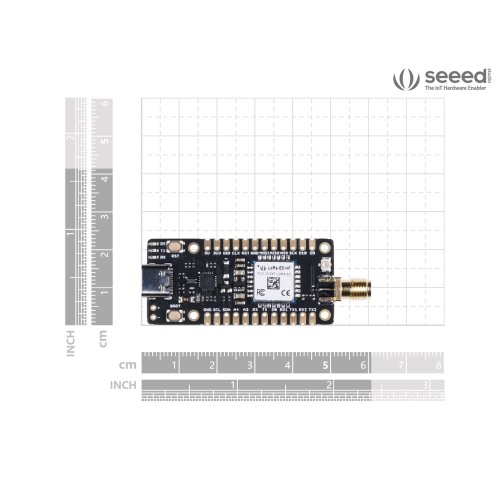

- size: 50*23mm
- voltage - supply: 3.7V - 5V
- power - output: up to +20.8 dBm at 3.3V
- working frequency: 868/915MHz
- protocol: Long Range
- sensitivity: -116.5 dBm ~ -136 dBm
- interfaces: USB Type C / 2P-2.54mm Hole / 1*12P-2.54mm Header*2 / SMA-K / IPEX
- modulation: Long Range , (G)FSK, (G)MSK, BPSK
- working temperature: -40℃ ~ 85℃
- current: Wio-E5 module sleep current as low as 2.1uA (WOR mode)
- Would like to learn more about the application scenarios of the LoRa-E5 module? Please check out the following real-world use cases:
- Solar-Powered Outdoor LoRaWAN Air Quality Monitor
- Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
- Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
- Smart City: Wio-E5-based Indoor Air Pollutant Detection Project
- Wio-E5 & ESP32 Powered WiLoBlIno
- Loko: The Tiniest GPS Tracker with Built-In Wio-E5 Module Can Track Any Wild Animals and Drones
Documents:
- Grove LoRa-E5 Datasheet:
- LoRa-E5 Datasheet:

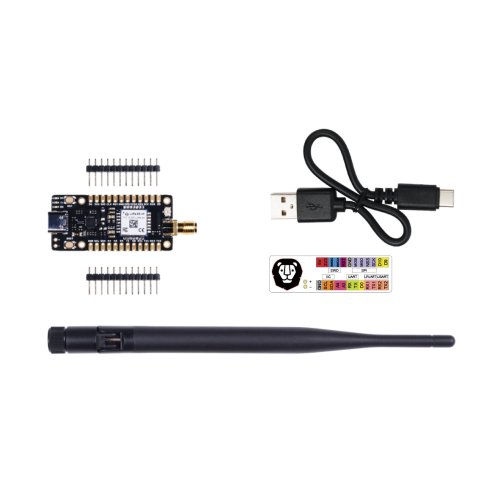

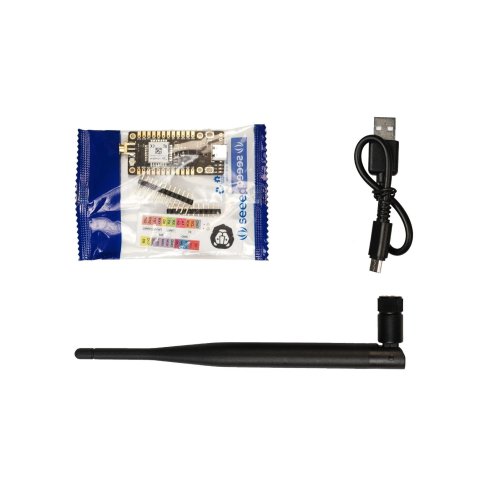

Package Includes:
- 1 x Wio-E5 mini
- 1 x Antenna(EU868/US915)
- 1 x USB TypeC (20cm)
- 1 x Sticker
- 1X12pin male pin headers *2
Wio-E5 mini Dev Board - STM32WLE5JC, ARM Cortex-M4 and SX126x embedded, supports LoRaWAN on EU868 & US915
- Brand: Seeed Studio
- Product Code:Seeed-LoRa-Mini-Dev-Board
- Reward Points:23
- Availability:In Stock
-
रo 2,752.94
- Ex Tax:रo 2,333.00
- Price in reward points:2333
-
- 90 or more रo 2,610.16
