- Optimization for Cleanflight/Betaflight firmware - (flash as spracing target)
- ARM Cortex-M4 core STM32F303CC with 32bit/72MHz/256K Flash/40K SRAM and hardware floating point unit
- MPU6050 and BMP180 / BMP280 Sensors
- Build-in 8MB flash for black box log recorder
- On board OSD with absolutely original MAX7456EUI+ and standard FTDI debug port
- Receiver connector with PPM/SBUS/SumD/DSM2/DSMX and RSSI input
- Up to 3 serial ports and 8 PWM outputs
- Multifunction connectors with SWD/UART2~3/Soft-serial/Buzzer/LED trip/Voltage detection
- Multifunction OSD connectors with video_IN/ video_OUT/ICSP/debug port (UART1)
- PDB connector with 5V input/Current and Voltage detection
- Power input reverse polarity protection
- Power input: 5.0~5.5V
- Dimension: 35x35x9mm
- Fixing hole spacing: 30mm
- Weight: 7.3g
- PPM/RSSI/SBUS/SumD Receiver Cable
- Camera/video-TX cable
- Buzzer/LED strip/voltage detect cable
- OSD debug port to FTDI adapter cable
- 1 x Flight Controller with OSD - F3 (AIO)

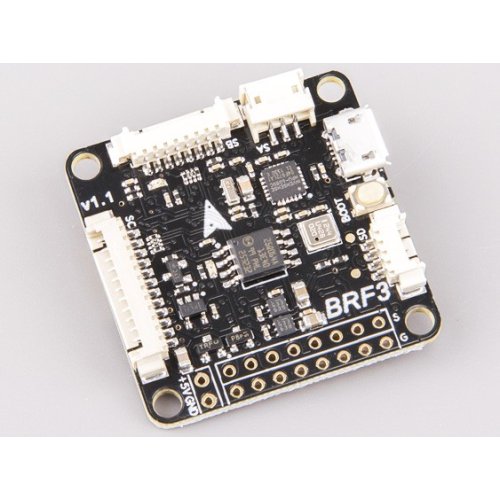

Flight Controller with OSD - F3 (AIO)
- Product Code:RC-Flight-Controller-Board-F3-AIO
- Reward Points:42
- Availability:Order now and get it in 15 days
-
रo 4,897.00
- Ex Tax:रo 4,150.00
- Price in reward points:4150
