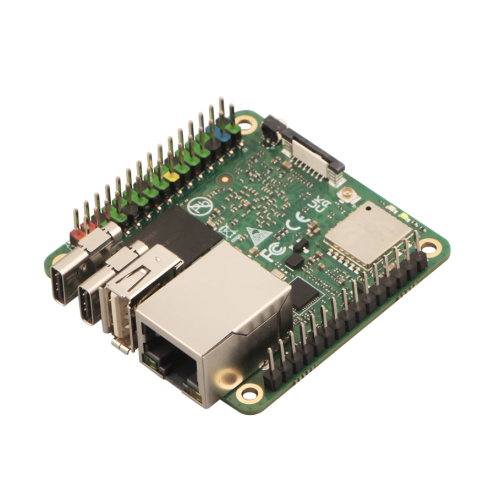

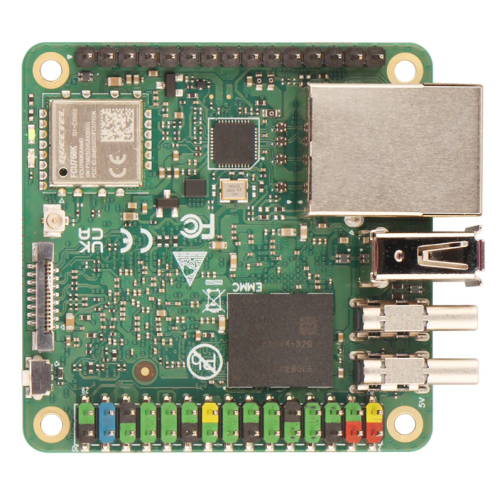

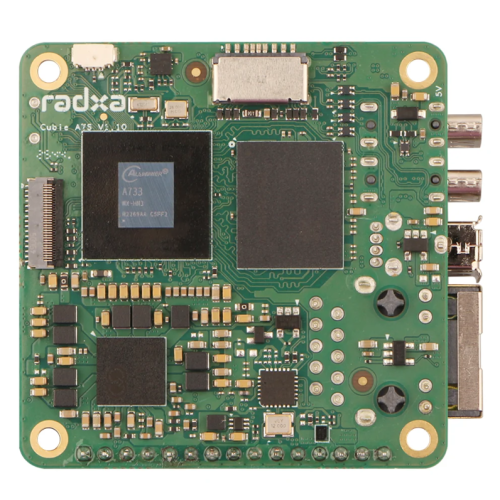

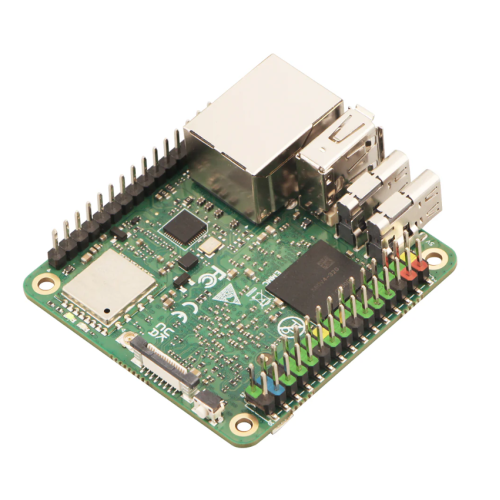

Allwinner A733 SoC based SBC for AI and Multimedia applications

Radxa Cubie A7S is a compact single‑board computer based on the Allwinner A733 SoC,combining an integrated GPU and up to 3 TOPS NPU for AI and multimedia applications. It supports up to 16GB LPDDR5 and optional onboard eMMC storage, with Gigabit Ether‑net and Wi‑Fi 6 / Bluetooth 5.4 connectivity

Specifications:

• RAD.ubie A7S product details
• Allwinner A733
• Dual‑core Cortex‑A76 up to 2.0GHz + Hexa‑core Cortex‑A55 up to 1.8GHz
• – Video Decode H.265 / VP9 /AVS2 (up to 8Kp24)
• – Video Encode H.264 / H.256 (up to 4Kp30)
• GPU
• Imagination BXM‑4‑64 MC1 (supports OpenGL ES 3.2, OpenCL 3.0, Vulkan 1.3)
• NPU
• Imagination BXM‑4‑64 MC1 (supports OpenGL ES 3.2, OpenCL 3.0, Vulkan 1.3)
• Memory LPDDR5
• LPDDR5x RAM up 16GB
• Storage
• ・ 1x optional onboard eMMC with up to 256GB
• ・ 1x Micro SD Card Slot
• Display
• 4K output via USB Type‑C with DisplayPort Alt Mode
• Video decode - H.265 / VP9 / AVS2 (up to 8Kp24)
• Video encode - H.264 / H.265 (up to 4Kp30)
• Interfaces
• ・ 1x USB Type‑C™ (USB 2.0, 5V Power & OTG)
• ・ 1x MicroSD Card Slot
• ・ 1x USB Type‑C (USB 3.2, DisplayPort Alt Mode & OTG)
• ・ 1x USB Type‑A (USB 2.0, Host)
• ・ 1x Antenna connector for external antenna
• ・ 1x Gigabit Ethernet port
• ・ 1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support
• ・ 1x eMMC or UFS module connector
• ・ 1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI)
• ・ 1x MIPI CSI (4‑lane) for camera
• ・ 1x FPC Connector (PC&Ie 3.0 x1)
• ・ Miscellaneous
• – 1x fan connector
• – 1x USB BOOT button
• – 1x 15‑Pin GPIO Header 1x 30-Pin GPIO Header
• Network
• LAN
• 1GbE LAN
• WiFi
• WiFi 6 and BT 5.4 with External Antenna Connector
• Software
• ・ Debian Linux® support
• ・ Android™ 13 support
• ・ Hardware access/control library for Linux/Android
• Others
• Power: 5V / 1A power adapter via USB Type‑C power port
•  alt: 5V power supplied through GPIO pins 2 & 4
• Size 50.8mm x 50.8mm

Package Includes:

• 1 x RADXA Cubie A7S
