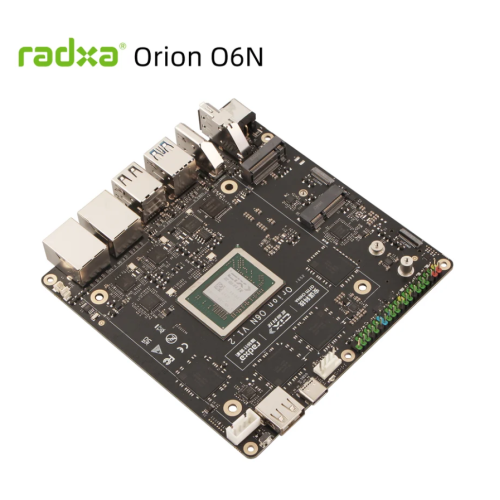

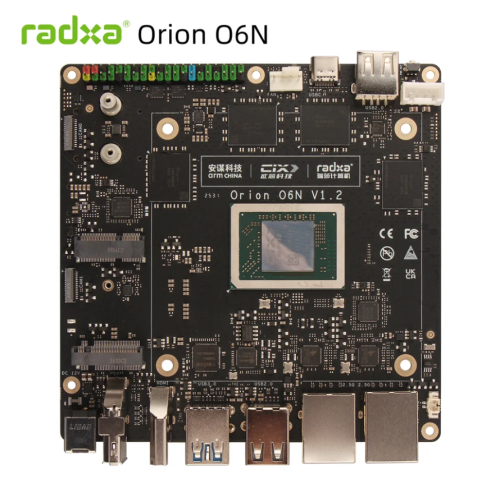

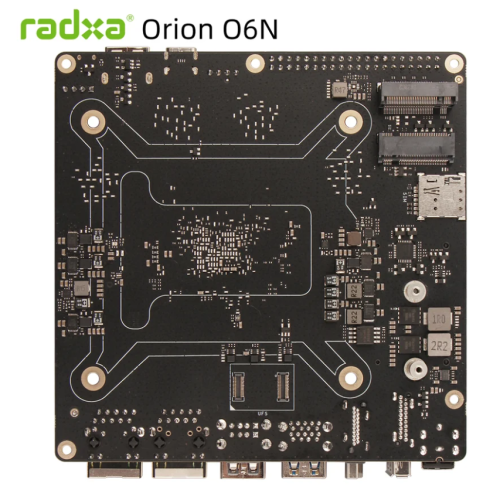

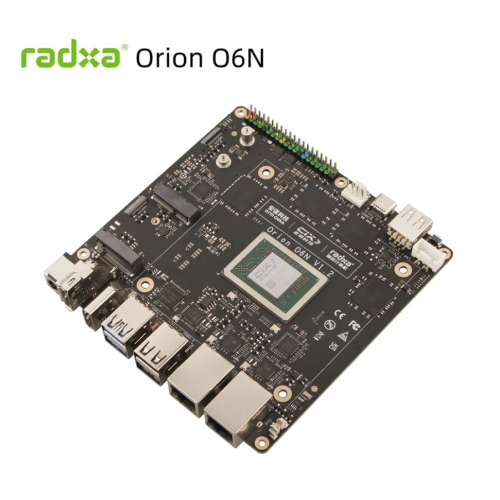

RADXA's Orion O6N is an ARM AI Motherboard with Nano ITX formfactor
RADXA´s Orion O6N is a professional-grade Nano ITX motherboard designed for AI computing and multimedia applications. It is powered by the Cix P1 SoC and features up to 64GB LPDDR5 RAM.
The Orion O6N is ideal for AI development workstations, edge computing nodes or e.g. high performance personal computing.
Specifications:
- RADXA Orion O6N product details*
- SoC: Cix P1
- 4x Cortex®‑A720 (Big cores) up to 2.6GHz
- 4x Cortex®‑A720 (Medium cores) up to 2.4GHz
- 4x Cortex®‑A520 (LITTLE cores) 1.8GHz
- 12MB shared L3 cache
- GPU
- Arm® Immortalis™ G720 MC10
- Hardware Ray‑Tracing enabled
- Graphic API´s:
- Vulkan® 1.3
- OpenGL® ES 3.2
- OpenCL® 3.0
- AI
- up to 45 TOPs combined (NPU + CPU + GPU)
- NPU Standalone
- Precision Support: INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration
- Memory LPDDR5
- 128-bit memory bus
- Optional 5000MT/s or 6000MT/s transfer speed
- LPDDR5 with 8, 16, 32, 48 or 64GB
- Storage
- 1x UFS Module Connector for Radxa UFS Module as OS storage
- 2x M.2 M key connector for PCIe 4.0 x4 lanes for M.2 NVMe SSD
- Display Outputs (up to 4 concurrent display outputs)
- 1x HDMI 2.0 up to 4k@60FPS (without HDMI CEC support)
- 1x DP 1.4 with MST (Mulit-Stream Transfer) support up to 4k@120FPS
- 1x USB-C with DisplayPort Alt Mode, supporting displays up to 4Kp60
- Video Input
- 2x MIPI Camera interface
- each can be configured as 4-lane or 2-lane MIPI CSI
- USB
- 2x USB 3.2 HOST Type-A Ports (10Gbps)
- 1x USB Type-C Port with DP Alt Mode (4K@60Hz)
- 3x USB 2.0 HOST Type-A
- 2x USB 2.0 Type-A
- Network
- Wireless / Bluetooth
- 1x M.2 E Key Connector for WiFi 6
- 1x M.2 B Key Connector for Mobile Network
- LAN
- 2x 2.5GbE RJ45 ports
- Other:
- - 1x PWM / TACH fan connector
- - 1x RTC Socket (CR1220 battery)
- - 1x Front Panel header for Power Button / Reset Button / Status LED
- Power
- DC 12V 5525 Power connector
- 1x 5V/12V 4P Floppy Power in Connector
- 1x 4 Pin CPU fan header with smart PWM Control and TACH
- Dimensions: 120mm x 120mm
- Recommended operating temperature: 0 ~ 50°C
- Software Support
- Debian Linux distributions
- - Android
- - OpenHarmony
- - Deepin Linux
- - Fedora Linux
- - Full UEFI support via EDKII
- - BSP and SDK available
- Essentials You Need
- Radxa Orion O6N
- 36W (12V/3A or larger) DC Power supply
- Keyboard & Mouse
- Monitor with HDMI input
Package Includes:
- 1 x RADXA Orion O6N
