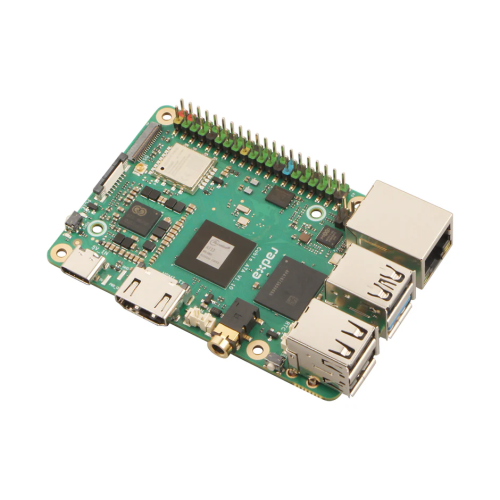

RADXA Cubie A7A

• Allwinner A733 SoC powered SBC for affordable edge AI innovation

Processor

Allwinner A733 SoC

• Octa-Core CPU: Dual-Core Cortex - A76 @2.0GHz & Hexa-Core Cortex - A55 @1.8GHz
• NPU:  3TOPS AI accelerator for real-time edge inference

Imagination BXM-4-64 MC1 GPU

• OpenGL ES 3.2
• Vulkan 1.3
• OpenCL 3.0

RAM

• LPDDR5 RAM
• 2GB /4GB /6GB /8GB /12GB

Onboard eMMC 5.1/UFS 3.0 2-lane module connector for high-performance embedded storage

• optional eMMC storage modules from 8GB to 128GB
• optional UFS storage modules from 64GB to 1TB

Onboard SPI Flash for Bootloader

• H.265MP/VP9/AVS2 multivideo decoder up to 8K@24fps
• H.264BL/MP/HP multivideo decoder up to 4K30fps
• H.264BP/MP/HP multivideo encoder up to 4K@30fps
• MJPEG encoder up to 4K@15fps, JPEG encoder up to 8K x 8K resolution
• Supports AES/DES/3DES/SM4 encryption and decryption algorithms

Interfaces

Display

• 1x HDMI port up to 4Kp60
• 1x MIPI DSI Interface (four lane MIPI DSI)

Camera

• 1x four lane MIPI CSI or 2x dual lane MIPI CSI Interface

Wireless

• IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (external Antenna Conn)

Storage

• 1x Micro SD card slot
• 1x PCIe 3.0 single-lane FPC Connector

USB

• 1x USB 3.1 Type A HOST Port
• 3x USB 2.0 Type A HOST Port
• 1x USB 2.0 OTG Type C Port for Data and Power

Ethernet

• 1x Gbit LAN Port with (1x PoE support via optional PoE hat)

GPIO

• 40-pin expansion header supporting:
• UART, I2C, SPI, GPIO, PWM
• 2 x 5V DC power in/out
• 2 x 3.3V DC power out

Other

• 1x power button
• 2 pin RTC battery header

Software

• Debian Linux support
• Android™ 13 support (Android 13 support requires the official BSP or vendor‑provided SDK. Actual feature set may depend on further validation and licensing)
• Hardware access/control library for Linux

Power

• USB Type‑C with min 5V/3A ( alternative via PoE HAT)

Size

• 56mm x 85mm

Operation temperature:

• 0°C to 60°C

Certifications:

• FCC, CE, RoHS

Package Includes:

• 1 x RADXA Cubie A7A
