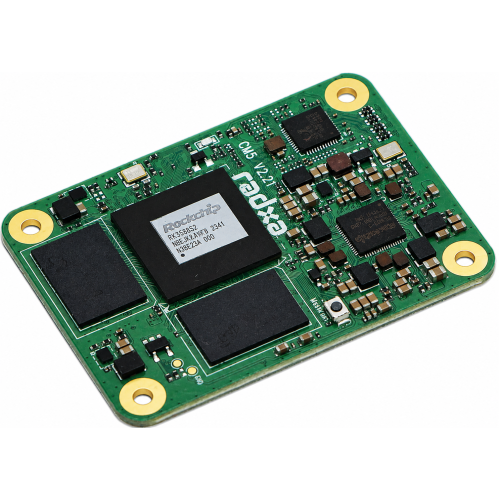

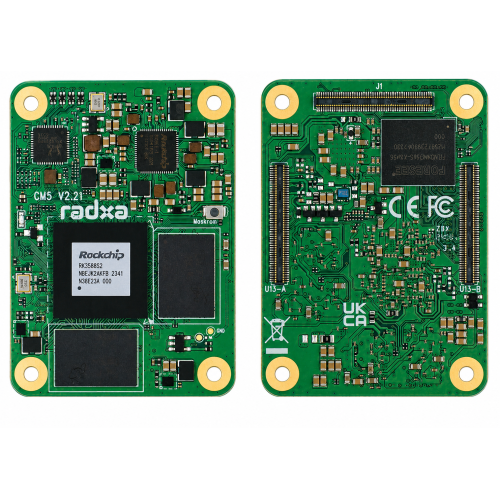

Radxa´s CM5 is an advanced SoM (System on Module) based on the RK3588S2 SOC
The Radxa CM5 integrates the Central Process Unit (CPU),
Graphics Processing Unit (GPU), Neural Processing Unit (NPU), Power Management Unit
(PMU), LPDDR4X DRAM Memory and onboard eMMC Storage in a small form factor of just 55mm x 40m.
Radxa´s CM5 offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.
Overview of features:
- Quad core 64 bit High Performance Solution
- Radxa CM5 is powered by the Rockchip RK3588S2 SoC, a 64bit Quad Cortex®-A76 @2.2~2.4GHz and Quad Cortex®-A55 @1.8GHz (ARM v8). It comes with a maximum of 32GB RAM and up to 256GB eMMC storage.
Detailed technical specifications:
- Processor:
- Rockchip RK3588S2, Quad Cortex®-A76 @2.2~2.4GHz and Quad Cortex®-A55 @1.8GHz (ARM v8) based on Arm® DynamIQ™ configuration
- GPU:
- Arm Mali™ G610MP4
- NPU:
- 6TOPs@INT8
- Memory:
- 4GB, 8GB, 16GB or 16GB LPDDR4X (depending on variant)
- Storage:
- 32GB/ 64GB /128GB /256GB onboard eMMC
- Multimedia:
- H.265 and VP9 decoder by 8K@60fps
- H.264 decoder by 8K@30fps
- AV1 decoder by 4K@60fps
- H.264 and H.265 encoder by 8K@30fps
- Ethernet:
- 1 x Onboard Gigabit Ethernet PHY
- Display:
- 1x HDMI TX up to 8K@60hz・ 1x eDP TX up to 4K@60Hz
- 1x DP TX (and USB3.0 Combo) up to 8K@30Hz
- 1x 2‑lane MIPI D/C‑PHY TX
- 1x 4‑lane MIPI D/C‑PHY TX
- Camera:
- 1x 2‑lane MIPI D/C‑PHY RX
- 1x 4‑lane MIPI D/C‑PHY RX
- Connectivity:
- 2 × USB 2.0 Host Port (HighSpeed)・
- 1 x USB 3.0 Host Port (SuperSpeed)・
- 1 x USB 3.0 OTG Port
- 2 x PCIe2.0 1‑lane, one shared with USB3 and SATA, one shared with SATA
- 2 x SATA ports, one shared with USB3 and PCIe2.0, one shared with PCIe2.0
- Up to 10x UART
- Up to 5x SPI
- Up to 3x CAN
- Up to 7x I2C
- Up to 15x PWM
- Up to 2x I2S
- Up to 2x PDM
- Up to 2x SPDIF TX
- Power Input:
- 5V DC, Max 5.2V
- Connector:
- Connector Type: 3x 100‑Pin B2B Connector
- Software:
- Debian/Ubuntu Linux support
- Android 11/12 support
- Dimensions: 55mm x 40mm
Package Includes:
- 1 x RADXA CM5 - RM120-D32E256R26
