RCWL-0516 Microwave Radar Sensor Switch
Description
Operating Voltage: 4-28V
Operating Current: 2.8mA (typical); 3mA (max)
Detection Distance: 5-9m
Transmitting Power: 20mW (typical); 30mW (max)
Output Voltage: 3.2-3.4V
Output Voltage Driving Capacity: 100mA
Trigger Way: repeat trigger
Output Control Low Level: 0V
Output Control High Level: 3.3V
Operating Temperature: -20~80 celsius
Storage Temperature: -40~100 celsius

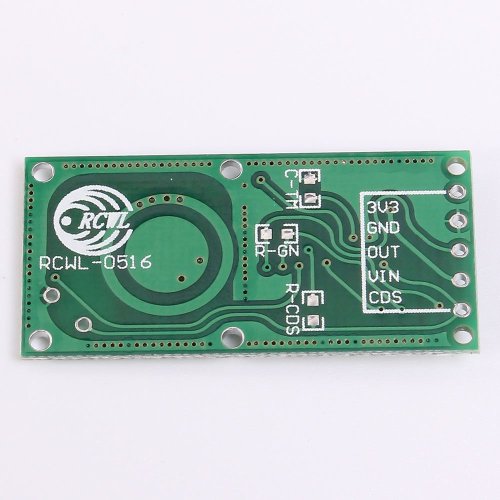

Instructions
1.C-TM
Adjust repeat trigger time, default trigger time is 2s; increasing capacitor's capacity will make repeat trigger time longer; and actual counting trigger time can operate as below:
Stick capacitor on C-TM, test 9196 3-pin frequency F, repeat trigger time T=(1/f)*32768
2.R-GN
Detection distance adjustment; connect with resistor and detection distance will become shorter; if not connect. Detection distance is 7m; if connect with 1M ohm resistor, detection distance is 5m
3.R-CDS
Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS. CDS connects with photoresistor. You can close detection function at night.

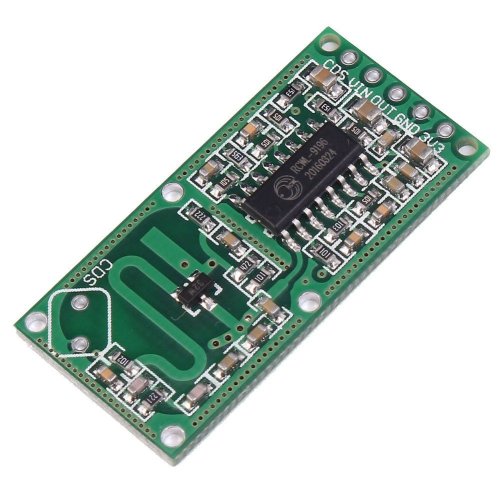

Pin Definition
3V3:3V3 power output
GND:ground
OUT:control output; when detect moving objects, it will output high level
VIN:input voltage,4-28V
CDS:enable control chip, lower than 0.7V, OUT will output low level all the time
Notes
The right ahead of induction side should't place any metal to block
The front/back side should reserve more than 1cm space
Module and installation carrier
Dimensions
Tested by Partner Joe Desbonnet:
Github
RCWL-0516 Microwave Radar Sensor Switch
Product Code:PRC-Microwave-Radar-RCWL-0516 Reward Points:1 Availability:Out Of Stock
रo 70.80
Ex Tax:रo 60.00 Price in reward points:75
