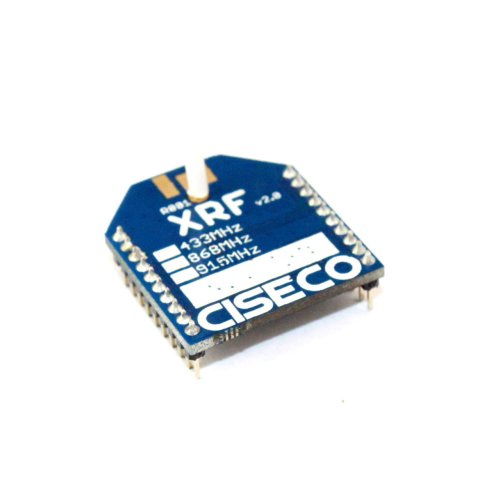

Easy to use RF serial data module with great range and XBee style pin layout. Provides an out-of-the-box wireless RF serial connection without any need for programming or end-user configuration, when we say plug them in and go, we mean it, they transfer serial data transparently without requiring any initial config.

Operates in the ISM bands (868 to 915 MHz) and that means it has a greater range than Bluetooth, WiFi or Zigbee sytle 2.4 GHz units that sport the same footprint (those things sold by Digi). That means it goes through more walls and reaches further. We have had reports of customers sending data over more than 3 KM using the standard supplied whip antennas out side. You should expect 500m + on the standard antenna.

Comes pre-loaded with firmware which enables the XRF to interwork with all other Ciseco RF modules, without any programming or configuration. You provide data one end and it appears on the other. All data packetisation, data checking, etc. is all done for you.

Makes use of Texas Instruments’ CC1110, a low-power System-on-Chip, which sports a micro-controller unit (MCU), memory, a sub-1GHz transceiver, and an encryption engine.

Features:
  • 2mm pin spacing the same as the XBee
  • Just 4 connections needed for transparent serial data mode (PWR, GND, RX, TX)
  • Supports network identifier PANID for communications into separate networks if desired
  • Facilitates remote Arduino/Xino over-the-air programming
  • Can be programmed in its own right (requires a TI cc debugger and a lot of experience in C)
  • Supports serial bootloading (firmware updates without a hardware programmer and using just RX/TX lines)
  • 5v tolerant data lines (can be used with a 5v micro without level conversion)
  • Acts in most serial applications as a drop in replacement for series 1 XBees
  • Made in the UK
Aplications:
  • Low power wireless applications operating in the 868 and 915 MHz ISM/SRD bands
  • Industrial monitoring and control
  • Wireless sensor networks
  • Wireless alarm and security systems
  • Automatic meter reading
  • Home and building automation
  • Low power telemetry



Write a review

Please login or register to review

XRF Wireless RF Radio UART Serial Data Module XBee Shaped

  • Brand: wireless things
  • Product Code:WT-XRF-Wireless-RF
  • Reward Points:15
  • Availability:In Stock
  • रo 1,475.00

  • Ex Tax:रo 1,475.00
  • Price in reward points:1475
