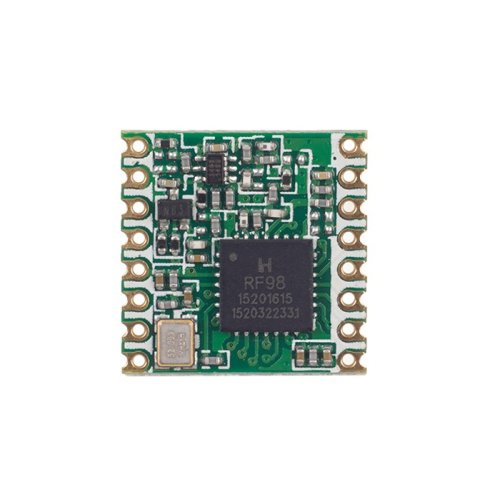

  • RFM98 Ultra-long Range Transceiver Module/LoRa Module/support 433M frequency
The RFM98 transceivers feature the LoRa™  long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

Using the patented LoRa™ modulation technique RFM98 can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRa™ also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM98 deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Features
  • LoRa™ Modem.
  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 mA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC
  • Packet engine up to 256 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.
  • Module Size：16*16mm

Package Details

  • 1 x Lora module (support 433M frequency)

Datasheet

Write a review

Please login or register to review
WhatsApp

RFM98 Ultra-long Range Transceiver Module/LoRa Module/support 433M frequency

  • Brand:: Seeed Studio
  • Product Code: :Seeed-RFM98
  • Reward Points: :10
  • Availability: :In Stock
  • रo 1,022.11

  • रo 907.37

  • Price in reward points: 1021
  • 80 or more रo 823.15

0 reviews / Write a review
