HC-12 wireless serial port communication module is a new-generation multichannel embedded wireless data transmission module. Its wireless working frequency band is 433.4-473.0MHz, multiple channels can be set, with the stepping of 400 KHz, and there are totally 100 channels. The maximum transmitting power of module is 100mW 20dBm), the receiving sensitivity is -117dBm at baud rate of 5,000bps in the air, and the communication distance is 1,000m in open space.

Configuration:

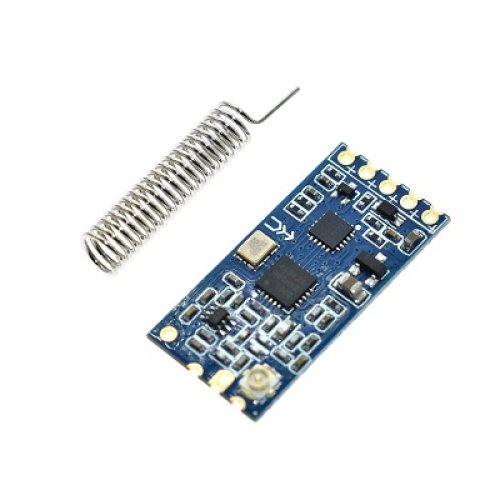

Standard configuration of HC-12 module only contains one 433MHz-frequency-band wireless communication module with IPEX20279-001E-03 standard RF socket. The optional accessories are 433MHz-frequency-band spring antenna, IPEX-to-BNC coaxial cable and matching 433MHz-frequency-band omni-directional rubber antenna of BNC connector. User could purchase them according to use requirements

Features:

Long-distance wireless transmission (1,000m in open space/baud rate 5,000bps in
the air)
Working frequency range (433.4-473.0MHz, up to 100 communication channels)
Maximum 100mW (20dBm) transmitting power (8 gears of power can be set)
Three working modes, adapting to different application situations
Built-in MCU, performing communication with external device through serial
port
The number of bytes transmitted unlimited to one time
Update software version through serial port

Package Includes:

1 x HC-12 Transceiver

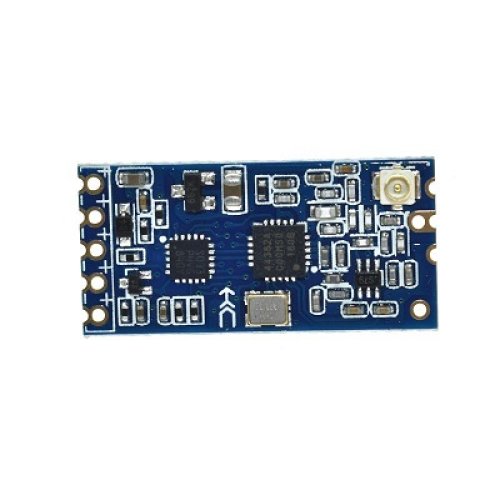

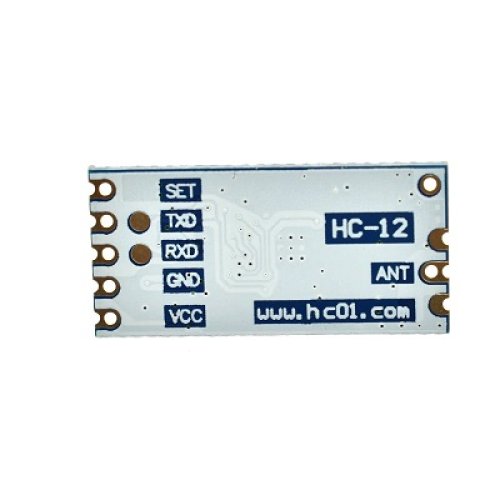

HC-12 Transceiver

Product Code:PRC-HC-12-Transceiver
Reward Points:31
Availability:Out Of Stock

रo 365.80
Ex Tax:रo 310.00
Price in reward points:310

Qty

0 reviews / Write a review
