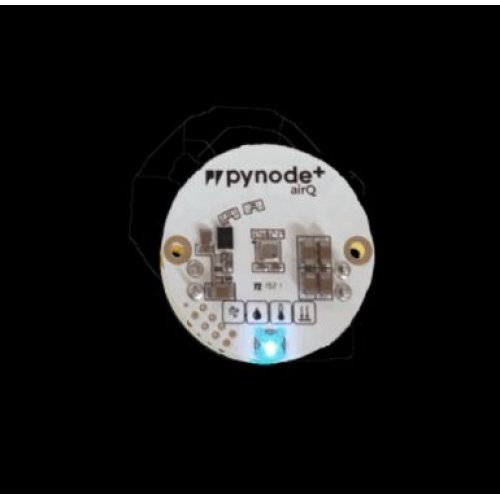

Bluetooth BLE 5.1 Air Quality and Temperature sensor featuring Dialog Semiconductor DA14531 BLE 5.1 and Bosch BME688 Air Quality sensor.

Get ready to wirelessly monitor air quality and temperature in any location.

The Pynode+ AIRQ is a ready-to-use Bluetooth BLE-enabled sensor that connects seamlessly to your WiPy, GPy, LoPy4, FiPy or OEM product. Or you could even connect it to something that’s not a Pycom device as long as it runs BLE 5.1.

Pynode+ sensors are ready to use out of the box.

Specifications:

• Air Quality and Temperature Sensor

• Bosch BME688 Air Quality sensor

• Bluetooth / BLE
• BLE Chip: Dialog Semiconductor DA14531

• Compatible with Bluetooth v5.1, ETSI EN 300, 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
• Supports up to three BLE connections
• Microcontroller: 16 MHz 32-bit Arm Cortex-M0+
• TX: 3.5 mA, RX: 2.2 mA (system currents with DC-DC, VBAT_HIGH =3 V and 0 dBm)
• Size
• Diameter: 30 mm

• Height: 7.62 mm
• Weight: 3 g (excl. battery) and 6 g (incl. battery)
• Weight in packaging: 21 g
• Battery
• Panasonic CR2032 LITHIUM 3V COIN 20mm

• Power consumption
• Central role for initial configuration: avg.: 446uA and max: 1.67mA

• Peripheral & Advertising mode (1minute sleep timer): avg.: 7.16uA and max: 1.00mA
