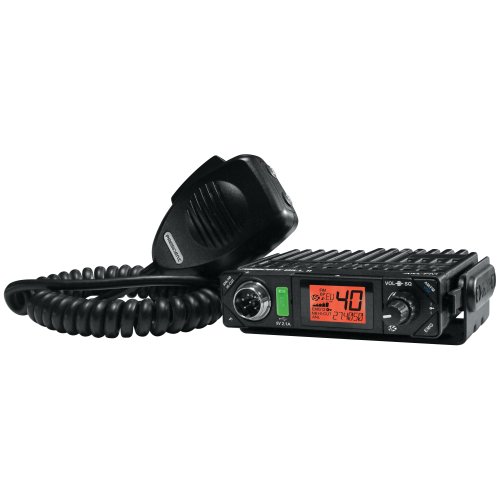

• CB Radio - BILL II ASC

President BILL II ASC Citizen's Band Radio now in India..No license required !

Features:

  • 40 channels AM / FM
  • 12 V
  • USB 5V / 2.1A
  • Up/down channel selector
  • Volume adjustment and ON/OFF
  • Manual squelch and ASC
  • Multi-functions LCD display
  • S-meter
  • ANL filter, NB, HI-CUT
  • F function key
  • Beep Function
  • Roger Beep
  • Mode switch AM / FM
  • Preset channel programmable
  • VOX
  • Scan / Scan skip
  • TOT (Time out timer)
  • Front microphone plug
  • Microphone Electret or Dynamic
  • 40 channels AM / FM
  • 12 V
  • USB 5V / 2.1A
  • Up/down channel selector
  • Volume adjustment and ON/OFF
  • Manual squelch and ASC
  • Multi-functions LCD display
  • S-meter
  • ANL filter, NB, HI-CUT
  • F function key
  • Beep Function
  • Roger Beep
  • Mode switch AM / FM
  • Preset channel programmable
  • VOX
  • Scan / Scan skip
  • TOT (Time out timer)
  • Front microphone plug
  • Microphone Electret or Dynamic
  • External loudspeaker jack
  • External loudspeaker jack

Specifications:

  • Supply13.2 V
  • Number of channels40
  • AM : Yes
  • FM : Yes
  • Channel selector up / down
  • VolumeVolume adjustment and ON/OFF
  • SquelchManual squelch
  • ASC : Yes
  • DisplayLCD multifunction
  • Frequencies display: Yes
  • S-meterDigital
  • Vox: Yes
  • Filter ANL: Yes
  • Filter NB: Yes
  • Filter HI-CUT: Yes
  • Scan: Yes
  • F / Menu function key: Yes
  • Key Beep: Yes
  • Roger beep: Yes
  • Key locking: Yes
  • Preset channel EMG (customizable)
  • Microphone plugfront (6 pins)
  • External loudspeaker jack: Yes
  • Size102 (W) x 100 (D) x 25 (H) mm

Technical characteristics :

General :

  • Number of channels: 40
  • Modulation modes: AM / FM
  • Frequency ranges: from 26.965 MHz to 27.405 MHz
  • Antenna impedance: 50 ohms
  • Power supply: 12 V
  • Size: 102 (W) x 100 (D) x 25 (H) mm
  • Weight: 320 g
  • Accessories supplied:
    • 1 microphone UP/DOWN and its hanger
    • 1 mounting bracket with fixing screws
    • 1 Quick support

Transmission :

  • Frequency allowance: +/- 200 Hz
  • Carrier power:  4 W AM / 4 W FM
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Audio response: 300 Hz to 3 KHz
  • Emitted power in the adj. channel: inferior a 20 μW
  • Microphone sensitivity: 7 mV
  • Drain: 1,7 A at 13,2 V
  • Modulated signal distortion: 2 %

Reception :

  • Maxi. sensitivity at 20 dB sinad: 0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
  • Frequency response: 300 Hz to 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2.5 W
  • Squelch sensitivity:  mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate frequency rej. rate: 70 dB
  • Drain: 180 ~ 500 mA (13,2 V)

Documentation:

Package Includes :

  • 1 x CB Radio - BILL II ASC
