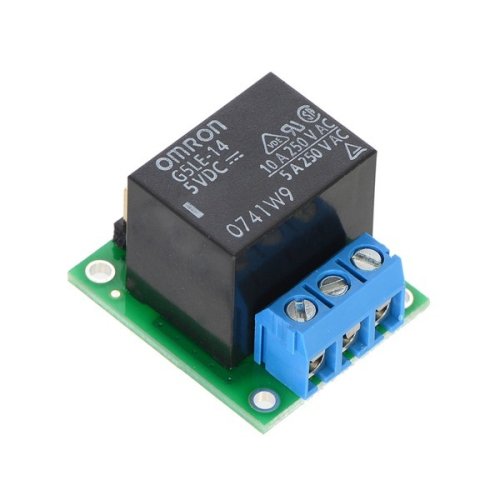

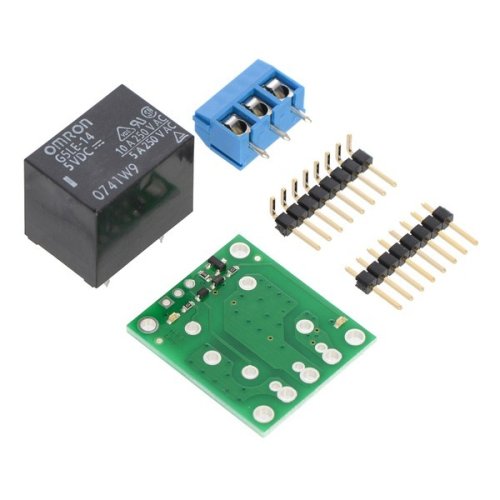

The Pololu 2480 / 2481 Basic SPDT Relay Carrier with 5VDC Relay allow simple control of a single-pole, double-throw (SPDT) switch from low-voltage, low-current control signals. This item includes the basic carrier PCB with a soldered-in 5 V relay, 5.0 mm terminal blocks for the switch connections, and straight 0.1" male header for the control connections. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10 A under most conditions. The modules are available with 5 V and 12 V power relays and they are available pre-soldered or as partial kits that allow greater application flexibility.
Documents:
Package Includes:
- 1 x Pololu 2481 / 2480 Basic SPDT Relay Carrier with 5VDC Relay
| Electrical Specifications | |
| Input Voltage | 5V |
| Physical Attributes | |
| Weight | 16g |

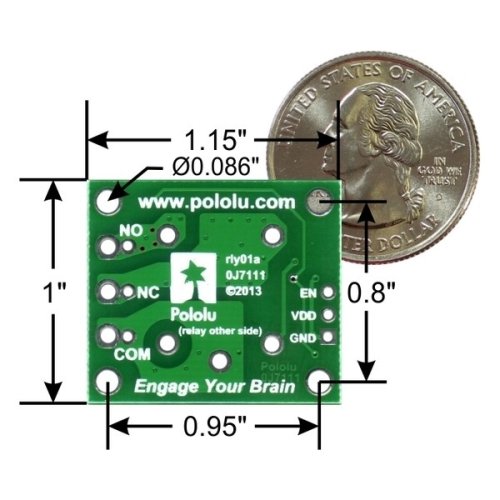

| Dimensions | 2480-1″ × 1.2″ × 0.9″, 2481-1″ × 1.15″ × 0.1″ |
| Additional Information | |
| Warranty | |
Pololu 2481 / 2480 Basic SPDT Relay Carrier with 5V DC Relay
- Brand: Pololu
- Product Code: Pololu-SPDT-Relay-Carrier
- Reward Points: 6
- Availability: In Stock
- रo 626.00
-
रo 601.00
- Price in reward points: 626
-
- 25 or more रo 601.00
- 45 or more रo 597.00
- 96 or more रo 578.00
- 120 or more रo 574.00
- 250 or more रo 569.00
