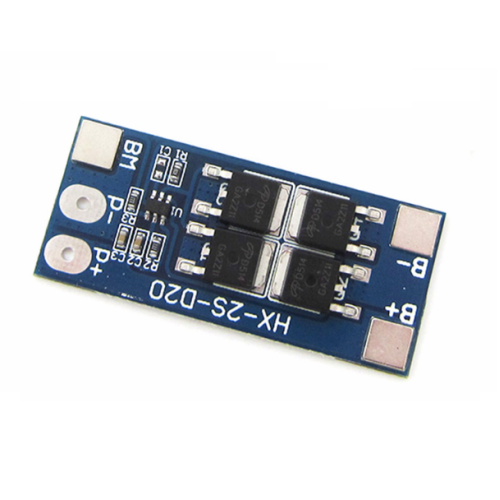

Battery Management System 2S 7.4V Li-ion
SPECIFICATIONS
Overcharging range: 4.25-4.35v±0.05V
Size: 46*20 *3.6mm
Overdischarge voltage range: 2.5-3.0V±0.05V
Maximum working current: 13A
Temperature: - 40- + 50 ℃
Maximum instantaneous current: 20A
Storage condition: - 40 - + 80 ℃
Quiescent current: less than 10uA
Life: 50,000 hours
Resistance: less than 300mΩ
Charging voltage: 8.4V-9V

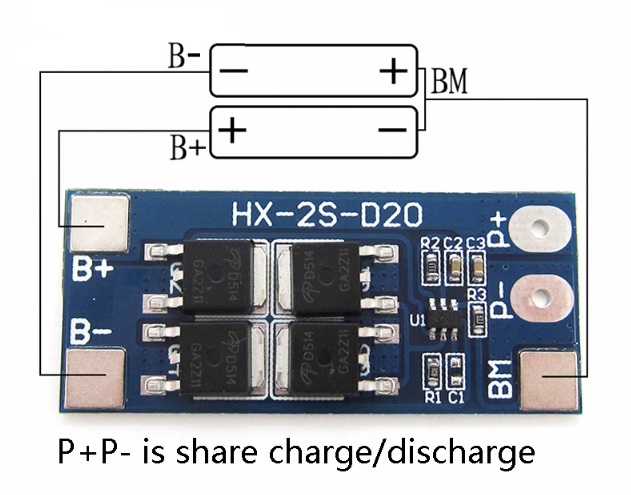

Welding point description:
· B + battery anode;
· B - connect battery negative
· MMB connect battery 1 to battery 2;
· P + charging/discharge
· P - charging/discharge
Battery Management System 2S 7.4V Li-ion
- Product Code:PRC-BMS-Li-Ion-2S
- Reward Points:3
- Availability:Out Of Stock
-
रo 318.60
- Ex Tax:रo 270.00
- Price in reward points:325
