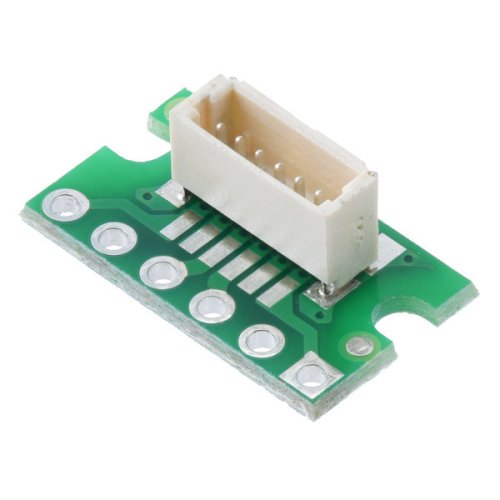

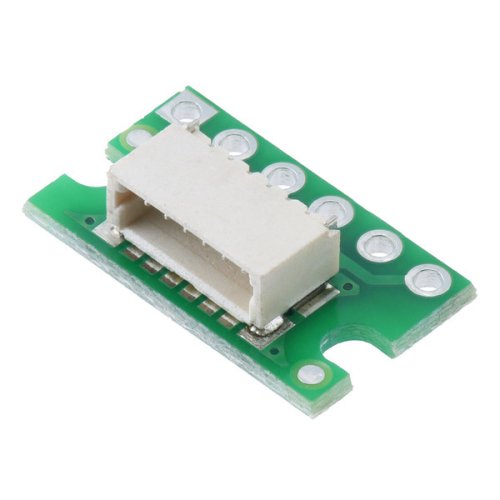

This simple board serves as an adapter between a JST SH-style 6-pin male connector and breadboard-compatible 0.1″-pitch through holes. It works with our assortment of 6-pin female JST
SH-style cables and can be used to more easily access the pins of our Micro Metal Gearmotor Encoders with top-entry and side-entry connectors.
Compatible Cables:
-
Twisted female-female cables with female JST SH-style connectors on both ends are available in five lengths:
- 10 cm (4″)
- 16 cm (6.3″)
- 25 cm (10″)
- 40 cm (16″)
- 63 cm (25″)
-
Single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, are available in three cable lengths:
- 12 cm (4.5″)
- 30 cm (12″)
- 75 cm (30″)
Documents:
Package Includes:
- 1 x Breakout for JST SH-Style Connector, 6-Pin (Top Entry or Side Entry )
| Physical Attributes | |
| Weight | 0.5g |
| Dimensions | 4772-0.6″ × 0.35″ × 0.16″, 4770-0.6″ × 0.35″ × 0.21″ |
| Additional Information | |
| Warranty | |
Pololu 4772 / 4770 Breakout for 6-Pin JST SH-Style Connector
- Brand: Pololu
- Product Code:Pololu-4772-4770-JST
- Reward Points:1
- Availability:In Stock
-
रo 120.36
- Ex Tax:रo 102.00
- Price in reward points:102
-
- 25 or more रo 115.64
- 100 or more रo 112.10
- 250 or more रo 106.20
- 500 or more रo 103.84
Available Options
