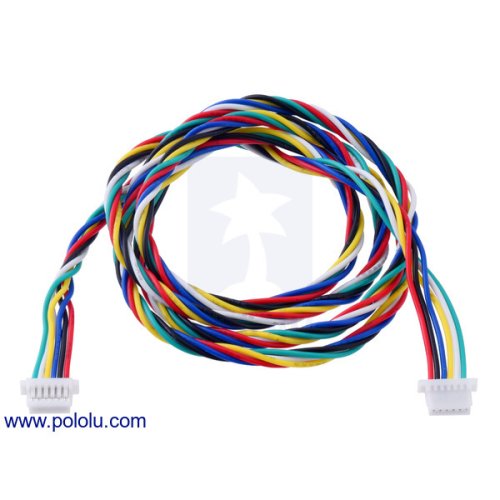

This cable has six 28 AWG wires and 6-pin female JST SH-type connectors on both ends. These connectors work with our Micro Metal Gearmotor Encoders with top-entry connectors and with side-entry connectors as well as our breakout boards with top-entry and side-entry connectors.
Use with Micro Metal Gearmotor Encoders.
When used with our encoders, the wire color scheme is as follows:
| Color | Function |
| Red | motor power (connects to one motor terminal) |
| Black | motor power (connects to the other motor terminal) |
| Blue | encoder Vcc |
| Yellow | encoder A output |
| White | encoder B output |
| Green | encoder GND |
Package Includes:
- 1 x Pololu 4769 / 4768 / 4767 / 4766 / 4765 6-Pin Female-Female JST SH-Style Cable
| Physical Attributes | |
| Weight | 4765-1.5g, 4766-2g, 4767-2.5g, 4768-4g, 4769-6g |

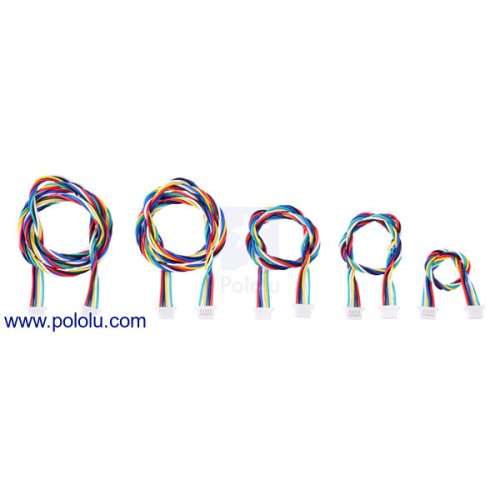

| Length | 4765-1.5inch, 4766-6.3inch, 4767-9.8inch, 4768-20inch, 4769-25inch |
| Additional Information | |
| Warranty | |
Pololu 4769 / 4768 / 4767 / 4766 / 4765 6-Pin Female-Female JST SH-Style Cable
- Brand: Pololu
- Product Code:Pololu-JST-SH-Cable
- Reward Points:2
- Availability:In Stock
-
रo 223.02
- Ex Tax:रo 189.00
- Price in reward points:189
-
- 5 or more रo 211.22
- 25 or more रo 206.50
- 80 or more रo 205.32
- 160 or more रo 202.96
- 405 or more रo 201.78
- 815 or more रo 199.42
