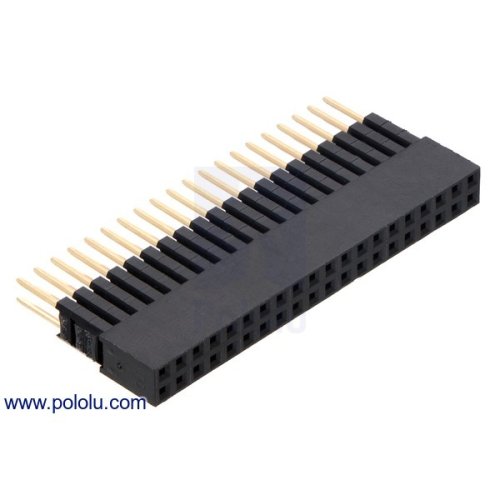

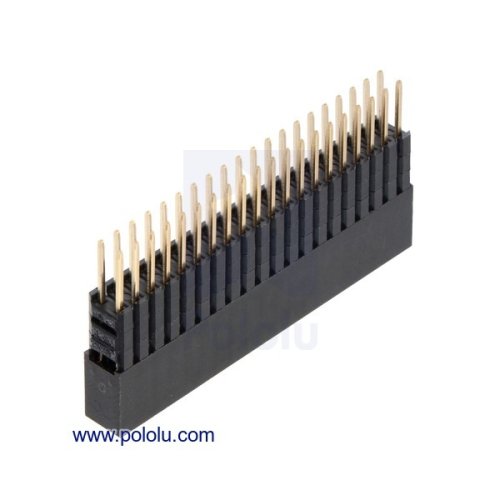

This stackable 40-pin female header features two rows of 20 pins spaced with a standard 0.1″ (2.54 mm) pitch; this spacing is the same as on most solderless breadboards and matches 0.1″ male header strips. The extended pins allow multiple units to be stacked as popularized on Arduino shields, enabling removable daughter boards that can access pins without blocking them. The 2×20 size is notably used on the Raspberry Pi Model A+ and Model B+ as well as the Raspberry Pi 2 Model B, Raspberry Pi 3 Model B, and Raspberry Pi 3 Model B+, and its height matches our 18.6 mm M2.5 standoffs for Raspberry Pi. This header includes three 0.1″-thick spacers, which gives it the necessary height to clear everything all the components on the Raspberry Pi Model B+ or the Raspberry Pi 2 Model B. The locations of these spacers can be adjusted if so desired to provide more clearance.

Specifications:

Pins: 2 x 20
Spacing: 0.100 in
Weight: 7.0 g
Gender: male-female
Pin type: straight, stackable
Current rating: 3 A

Package Includes:

1 x Pololu 2749 Stackable 0.100″ Female Header with Extra 0.3″ Spacer: 2x20-Pin, Straight

Pololu 2749 Stackable 0.100 inch Female Header with Extra 0.3 inch Spacer: 2x20-Pin, Straight

Brand: Pololu
Product Code:Pololu-2749-Stackable-Header
Reward Points:3
Availability:In Stock

रo 381.14
Ex Tax:रo 323.00
Price in reward points:323
25 or more रo 364.62
45 or more रo 361.08
100 or more रo 345.74
250 or more रo 336.30
490 or more रo 332.76

Qty

0 reviews / Write a review
