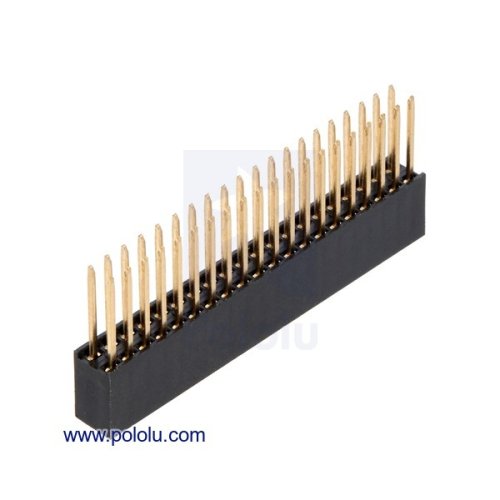

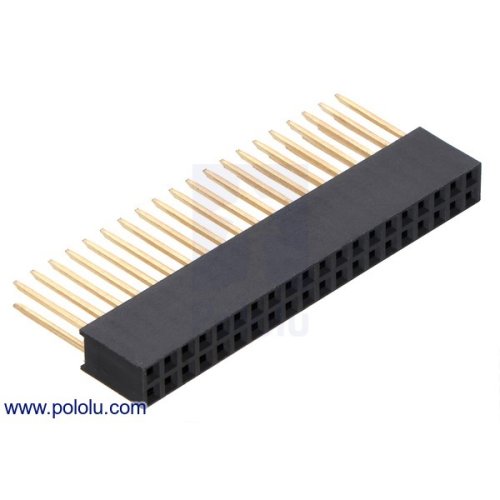

This stackable 40-pin female header features two rows of 20 pins spaced with a standard 0.1″ (2.54 mm) pitch; this spacing is the same as on most solderless breadboards and matches 0.1″ male header strips. The extended pins allow multiple units to be stacked as popularized on Arduino shields, enabling removable daughter boards that can access pins without blocking them. The 2×20 size is notably used on the Raspberry Pi Model A+ and Model B+ as well as the Raspberry Pi 2 Model B, Raspberry Pi 3 Model B, and Raspberry Pi 3 Model B+, and its height matches our 11 mm M2.5 standoffs for Raspberry Pi
Specifications:
- Pins: 2 x 20
- Spacing: 0.100 in
- Weight: 4.8 g
- Gender: male-female
- Pin type: straight, stackable
- Current rating: 3 A
Package Includes:
- 1 x Pololu 2748 Stackable 0.100″ Female Header: 2x20-Pin, Straight
Pololu 2748 Stackable 0.100 inch Female Header: 2x20-Pin, Straight
- Brand: Pololu
- Product Code:Pololu-2748-Header-Stackable
- Reward Points:2
- Availability:In Stock
-
रo 285.56
- Ex Tax:रo 242.00
- Price in reward points:242
-
- 25 or more रo 272.58
- 100 or more रo 259.60
- 130 or more रo 257.24
- 250 or more रo 252.52
