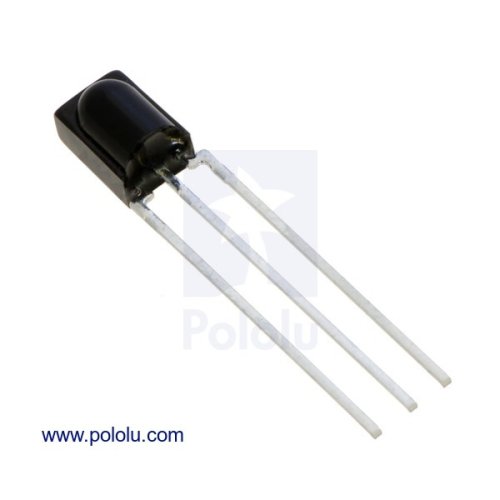

This IR demodulator from Vishay is a general-purpose receiver for IR-based remote-control projects. It is intended as detector for data formats that are modulated at 38 kHz and have at least 10 cycles/burst; popular IR-codes that meet these requirements are NEC, Sharp, and r-step (our Mini IR Remote Control uses NEC encoding, so it works well with the TSOP38438). The module’s output signal can be directly connected to a microcontroller; no additional external components are required.
Specifications:
- Operating Voltage: 2.5 V to 5.5 V
- Carrier Frequency: 38 kHz
- Package: Through-hole with 0.1″ lead spacing
Documents:
Package Includes:
- 1 x Pololu 2471 Vishay TSOP38438 IR Receiver Module, 38kHz
| Electrical Specifications | |
| Minimum Operating Voltage | 2.5 V |
| Maximum Operating Voltage | 5.5 V |
| Additional Information | |
| Warranty | |
Pololu 2471 Vishay TSOP38438 IR Receiver Module, 38kHz
- Brand: Pololu
- Product Code:Pololu-2471-TSOP38438
- Reward Points:1
- Availability:In Stock
-
रo 253.70
- Ex Tax:रo 215.00
- Price in reward points:215
-
- 5 or more रo 240.72
- 25 or more रo 233.64
