- Supply voltage: 5V
- Working environment: -25 ~ + 85 °
- Storage temperature: -30 ~ + 100 °
- Wavelength: 940nm
- Module size: 13.7mm × 27.8mm
- Signal type: digital signal
- Infrared center wavelength: about 850nm-940nm
- Infrared emission angle: about 20 degrees
- Infrared emission distance: about 1.3 meters (5V 38Khz)

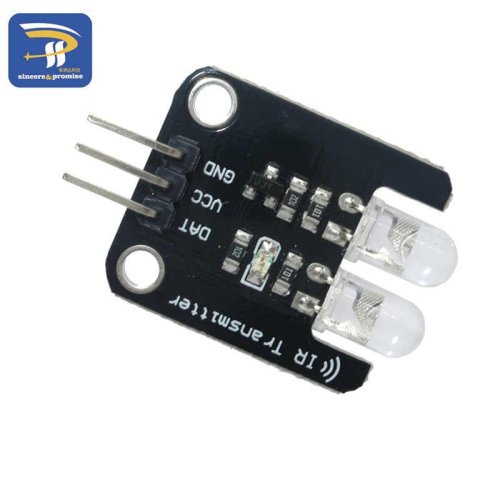

2 Way Transmitter specification:
- Size: 28 * 22mm
- Voltage: 5V
- Port: Digital level
- Modulation: Direct transmission No modulation
- Launch head: 2
- Launch distance: 1-3m
- Wavelength: 940nm
- Double tube direct launch, through the program to carry out waveform modulation
- With the launch signal to indicate the LED, easy to observe the debugging
- Applicable to infrared communication, infrared remote control

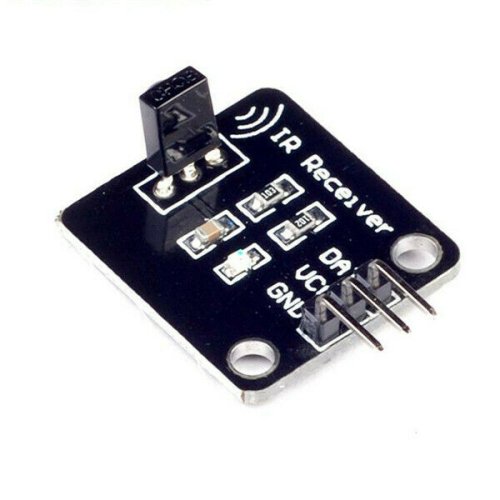

IR Receivr module specification :
- Adopt 1838 remote control receiver with high sensitivity
- Working voltage 5V
- Output form: digital output
- There are 2 fixing holes for easy installation. Aperture 3.1mm
- With data indicator
- PCB size: 23.5*21.5mm
- DAT digital output interface
- VCC 5V DC power supply positive
- GND 5V DC power supply negative

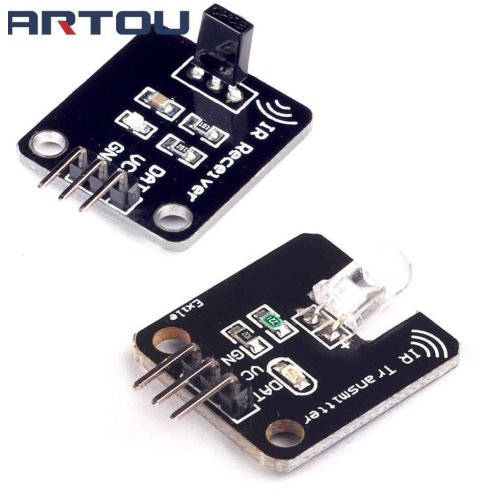

IR Infrared Transmitter Module and Receiver Sensor Module For Arduino
- Product Code:PRC-IR-Transmitter-Sensor-Module
- Reward Points:2
- Availability:Out Of Stock
-
रo 211.22
- Ex Tax:रo 179.00
- Price in reward points:179
